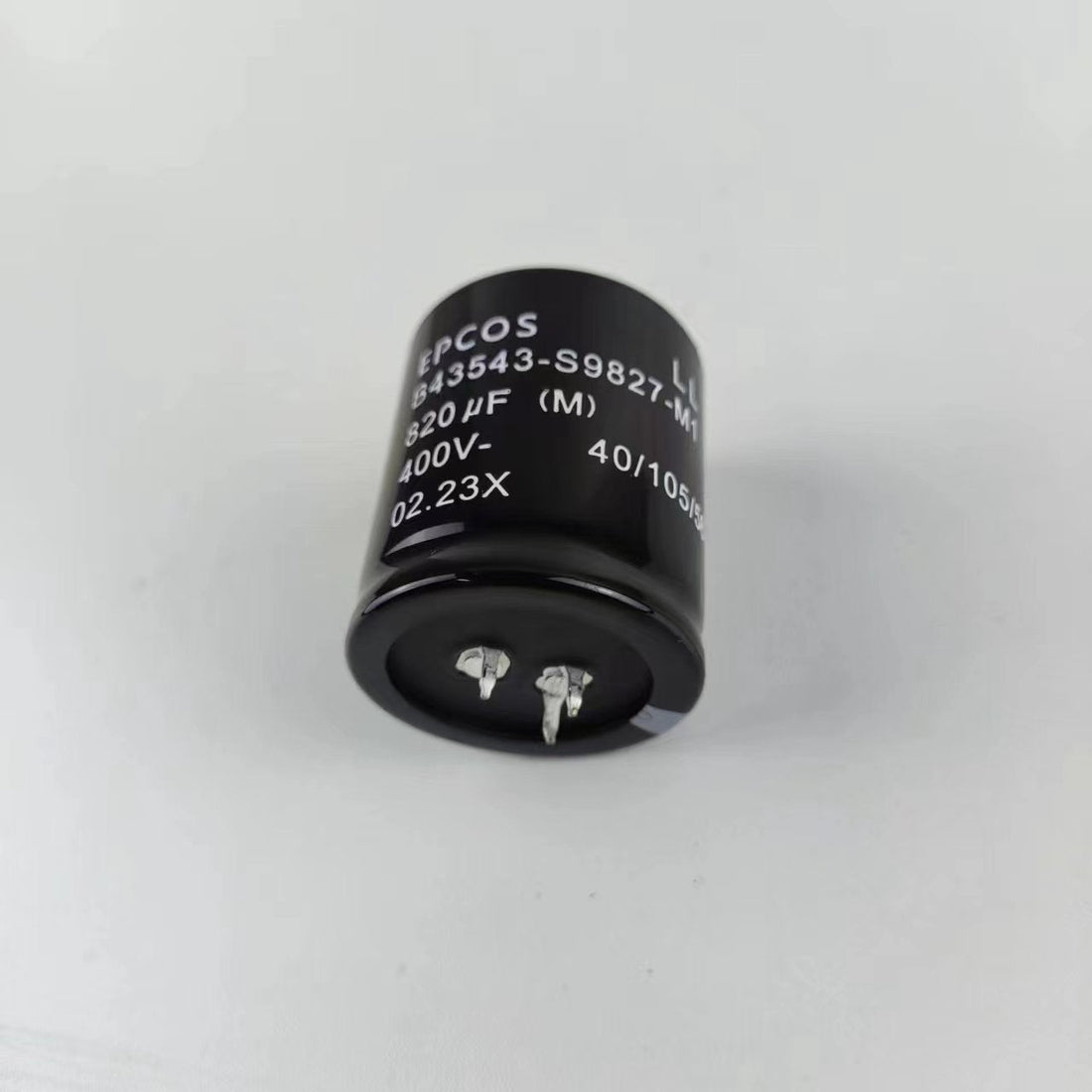

Mastering Aluminum Electrolytic Capacitors: A Comprehensive Technical Guide

In the vast landscape of electronic components, capacitors stand as fundamental pillars, enabling everything from stable power delivery to precise signal filtering. Among these, Aluminum Electrolytic Capacitors (AECs) are indispensable, particularly in power electronics, due to their ability to achieve high capacitance values in compact forms. Understanding their core principles, performance characteristics, and application nuances is crucial for any engineer or designer aiming for robust and reliable circuit designs.

This guide delves deep into the technical intricacies of Aluminum Electrolytic Capacitors, drawing from foundational engineering principles to practical application considerations.

I. The Fundamental Principle: How a Capacitor Works

At its heart, a capacitor is an energy storage device, fundamentally built upon the principle of a parallel plate capacitor. When a voltage (V) is applied across two conductive electrodes separated by a dielectric material, electric charge (Q) accumulates on the electrode surfaces. The relationship is defined by:

Q = C ⋅ V

Where 'C' is the capacitance, representing the capacitor's ability to store energy in an electric field. For a parallel plate configuration, capacitance is calculated as:

C = ε₀ ⋅ ε ⋅ A / d

Here, ε₀ is the permittivity of free space, ε is the dielectric constant of the material, A is the electrode area, and d is the distance between electrodes.

For Aluminum Electrolytic Capacitors, the dielectric is a very thin layer of aluminum oxide (Al₂O₃), typically with a dielectric constant ranging from 7 to 8. The remarkable volumetric capacitance of AECs stems from two key factors:

1. Electrochemical Etching: The anode electrode's surface is roughened significantly through electrochemical etching, enlarging its effective area (A) by a factor of 20 to 100 compared to plain foil.
2. Ultra-Thin Dielectric: The aluminum oxide dielectric layer is incredibly thin, often as little as 1.4 nm per volt of applied voltage, minimizing 'd'.

These combined factors allow AECs to store substantial charge in a relatively small volume, making them ideal for applications requiring high energy density.

II. Unveiling the Internal Dynamics: The Equivalent Circuit

While simple in concept, a real-world capacitor exhibits more complex behavior than an ideal component. Its electrical characteristics are best understood through an equivalent series circuit, which accounts for various inherent resistances, capacitances, and inductances:

• R1 (Resistance of Terminal & Electrode): Represents the ohmic resistance of the capacitor's leads and internal electrodes.
• R2 (Resistance of Anode Oxide Layer & Electrolyte): Accounts for losses within the dielectric and the resistive nature of the liquid electrolyte.
• R3 (Insulation Resistance): Pertains to leakage paths, particularly through any imperfect anodic oxide layer.
• D1 (Oxide Semiconductor of Anode Foil): Represents the rectifying property of the oxide layer.
• C1 (Capacitance of Anode Foil): The primary capacitance formed by the anode and its dielectric.
• C2 (Capacitance of Cathode Foil): A smaller capacitance associated with the cathode foil's naturally formed oxide layer.
• L (Inductance): Parasitic inductance arising from the capacitor's internal winding and leads.

These elements collectively define the capacitor's performance across different frequencies and temperatures, influencing crucial parameters like ESR and impedance.

III. Critical Performance Parameters: What Every Engineer Needs to Know

Selecting the right AEC requires a deep understanding of its key performance indicators:

A. Capacitance (C)

While calculated by the above formulas, the total capacitance of an AEC also considers the series connection of the anode (Ca) and cathode (Cc) capacitances. Standard capacitance tolerances are typically ±20% (M), though tighter tolerances like ±10% (K) are available for specialized applications. It's critical to note that specified capacitance values are universally measured at 120Hz and 20°C, as capacitance can vary with temperature and frequency.

B. Dissipation Factor (Tan δ)

Also known as the Loss Tangent, Tan δ is the ratio of the equivalent series resistance (RESR) to the capacitive reactance (1/ωC) at a specific frequency. A lower Tan δ indicates less energy loss, which translates to reduced self-heating within the capacitor.

C. Equivalent Series Resistance (ESR)

ESR is arguably one of the most critical parameters for power applications. It represents the sum of all ohmic losses within the capacitor, stemming from the resistance of the electrode foils, the electrolyte, and the internal connections. High ESR leads to increased power dissipation (I²R losses) and higher internal temperatures, which directly impacts the capacitor's lifespan. ESR typically decreases with increasing temperature and (at low frequencies) with increasing frequency.

D. Impedance (Z)

Impedance is the total opposition to alternating current flow at a given frequency, encompassing capacitance, inductance, and ESR. It’s calculated as Z = √(ESR² + (X_L - X_C)²), where X_L is inductive reactance and X_C is capacitive reactance. For AECs, impedance typically reaches its minimum value at the self-resonant frequency, where X_L and X_C cancel each other out, making Z approximately equal to ESR.

E. Leakage Current

This is the small DC current that flows through the capacitor when a rated voltage is applied. While it cannot be entirely eliminated, lower leakage current indicates a higher quality dielectric and better chemical stability. Its value is influenced by applied voltage, temperature, and charging duration. Proper material selection and manufacturing processes are crucial for minimizing leakage.

F. Ripple Current

Ripple current refers to the alternating current component superimposed on the DC voltage, which most often flows through the capacitor in power supply filtering applications. This current causes internal heating (due to ESR) and is a primary factor influencing the capacitor's operating temperature and lifespan. Manufacturers specify a rated ripple current for a particular operating temperature, limiting the permissible internal temperature rise (e.g., 10°C for 85°C types, 5°C for 105°C types). For applications with multiple ripple current frequencies, the root mean square (RMS) value of the combined currents must be considered, as all frequencies contribute to self-heating.

IV. Lifetime and Reliability: Designing for Durability

The expected lifespan of an AEC is a critical design consideration, often defined as the duration until its key parameters (capacitance, ESR, leakage current) drift beyond specified thresholds.

A. Understanding Capacitor Life Definitions

• Useful Life: Represents the capacitor's performance under actual application conditions, including DC bias, ripple current, and ambient temperature, until a small percentage of units (e.g., 1%) fall outside specified limits.
• Load Life: Similar to useful life but with stricter acceptance criteria and ensuring all tested units meet the standards.
• Shelf Life: An indicator of chemical stability, reflecting how long a capacitor can be stored without voltage applied before its characteristics degrade. A longer shelf life suggests higher material purity and manufacturing quality.

B. Self-Heating: The Hidden Lifespan Reducer

During operation, the ripple current flowing through the capacitor generates heat (P = I² ⋅ R), where I is the ripple current and R is the ESR. This internal heat causes a temperature rise (ΔT) within the capacitor core. Increased core temperature dramatically shortens the capacitor's expected life. Understanding and managing this ΔT is vital; engineers often approximate core temperature by measuring the can bottom temperature and applying known multipliers.

C. Reliability – The Bathtub Curve

The reliability of AECs, like many electronic components, can be visualized using the "bathtub curve," which illustrates three distinct failure rate periods over time:

1. Infant Mortality Period: Early failures caused by design deficiencies, manufacturing defects, or severe misapplication (e.g., over-voltage, reverse voltage). These are typically caught during aging processes or post-production testing.
2. Useful Life Period: A long period of low, random failure rates. Failures here are often application-related rather than time-dependent. During this phase, non-solid AECs show gradual changes like slow capacitance decrease and ESR increase due to minor electrolyte loss.
3. Wear-Out Failure Period: As the capacitor approaches the end of its designed life, the failure rate increases sharply. This is predominantly due to wear-out mechanisms such as electrolyte diffusion (evaporation) through the sealing material, leading to significant capacitance loss and ESR increase. High temperatures accelerate this process.

V. Practical Application Guidance: Ensuring Optimal Performance

Proper application and handling are paramount to maximizing an AEC's lifespan and ensuring circuit reliability.

A. Circuit Design Considerations

• Polarity: AECs are polarized devices. Strict adherence to polarity is a must. Applying reverse voltage or AC voltage (unless a specific non-polarized type is used, which still isn't suitable for full AC lines) will lead to catastrophic failure. Use non-polarized (bipolar) capacitors for circuits that may experience reverse polarity.
• Voltage Limits: Do not exceed the capacitor's rated voltage. When ripple current is present, ensure the peak voltage (DC bias + ripple peak) remains within the rated voltage.
• Series Connection: For applications exceeding a single capacitor's rated voltage, multiple AECs can be connected in series. However, due to slight leakage current variations, parallel balancing resistors are essential across each capacitor to ensure equal voltage distribution and prevent over-voltage on any single unit.
• Rapid Charging/Discharging: For circuits with frequent, rapid charge/discharge cycles (e.g., welding machines, photoflash), specialized capacitors designed for such stress are required.

B. Mounting and Soldering Best Practices

• Matching Lead Spacing: Ensure the component's lead spacing matches the PCB holes to avoid mechanical stress.
• Pressure Relief Vent: Do not place circuit traces or components directly over the pressure relief vent. Adequate clearance (e.g., 2mm-5mm depending on case diameter) is vital to allow pressure release safely, preventing rupture.
• Orientation: For screw terminal capacitors, ensure the end seal faces upwards. If mounted horizontally, the positive terminal should be in the upper position.
• Manual Soldering: Adhere to specified soldering conditions (temperature, time). Avoid applying excessive stress to leads during forming or removal. Do not let the soldering iron touch the capacitor body.
• Wave Soldering: The capacitor body must never be submerged in the solder bath. Only the component leads on the bottom of the PCB should contact the solder. Adhere to specified temperatures and immersion times. Avoid flux or other chemicals contacting the capacitor body or other components.

C. Environmental and Maintenance Guidelines

• Environmental Exposure: Protect AECs from water, extreme temperatures, high humidity, salt spray, oil, aggressive chemicals (sulfur, chlorine, acids, alkalis), direct sunlight, ozone, UV radiation, and excessive vibration or mechanical shock. These elements can significantly accelerate degradation and lead to premature failure.
• PCB Layout: Avoid placing heat-generating components near AECs, especially on the reverse side of the PCB directly under the capacitor, as this increases their operating temperature and shortens lifespan.
• Parallel Connections: When connecting multiple capacitors in parallel, ensure current is balanced, especially if mixing different types (e.g., solid conductive polymer with standard aluminum electrolytic).
• Maintenance Inspection: Periodically inspect industrial equipment's AECs for signs of failure: visible abnormalities (vent operation, electrolyte leakage) and electrical performance degradation (capacitance, dissipation factor, leakage current).

Conclusion

Aluminum Electrolytic Capacitors are cornerstone components in countless electronic designs, offering reliable energy storage and filtering capabilities. Their seemingly simple function belies a complex interplay of materials, electrochemical processes, and electrical parameters. By thoroughly understanding their construction, key performance indicators like ESR, impedance, and ripple current handling, alongside critical reliability factors such as self-heating and the bathtub curve, engineers can make informed choices that ensure the longevity and optimal performance of their circuits.

Adhering to best practices in circuit design, mounting, soldering, and environmental protection further extends the life of these essential components, leading to more robust and dependable electronic systems.
