Mastering Motion: A Comprehensive Guide to Rolling Bearing Classifications

In the intricate world of machinery and industrial applications, rolling bearings are fundamental components, enabling smooth and efficient rotary (and often linear) motion. They are meticulously designed to reduce friction, support immense loads, and ensure the precise operation of everything from the smallest motors to the largest industrial equipment. For engineers, designers, and maintenance professionals, understanding the diverse classifications of rolling bearings is paramount to selecting the optimal component for any given application, ensuring peak performance, longevity, and reliability.

A leading global manufacturer of these critical components offers an extensive portfolio of rolling bearings, each type engineered with specific characteristics to excel under varying load conditions, speeds, temperatures, and environmental challenges. This article delves into the primary classifications and specialized solutions available, providing a comprehensive overview of how these precision components are categorized and why their distinctions matter.

I. The Core of Rolling Bearings: Ball vs. Roller

The fundamental distinction among rolling bearings lies in their rolling elements: balls or rollers. This choice dictates the bearing's primary load-carrying capacity and speed capabilities.

A. Ball Bearings: Precision and High-Speed Agility Ball bearings utilize spherical rolling elements, which provide minimal contact friction, making them highly suitable for high-speed applications and scenarios demanding precise alignment.

1. Deep Groove Ball Bearings: The most ubiquitous type, known for their versatility. They can accommodate both radial and moderate axial loads in both directions. Their robust design and low maintenance make them a go-to choice for general-purpose machines.

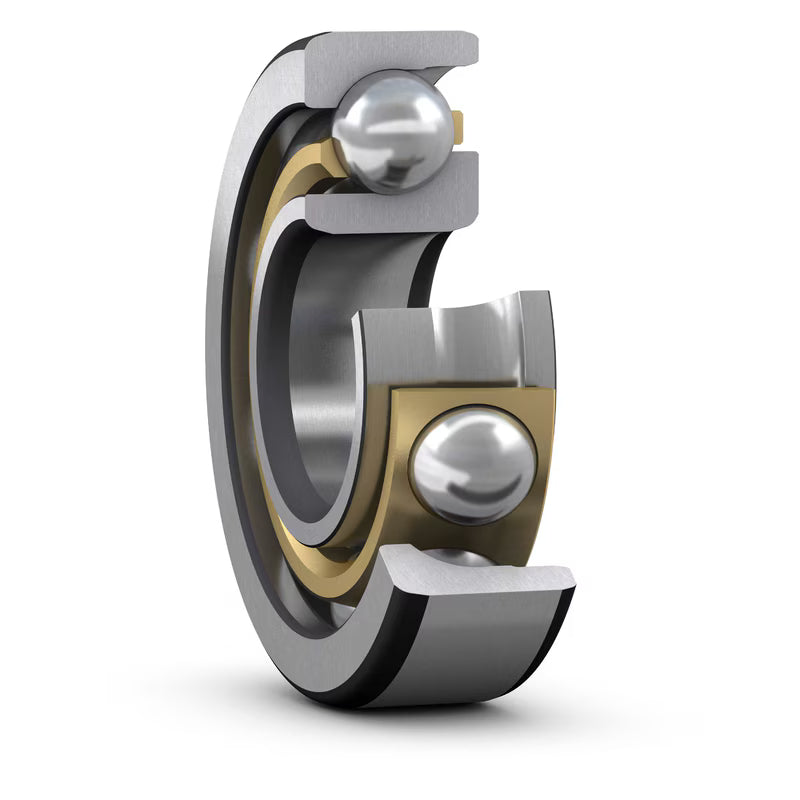

2. Angular Contact Ball Bearings: Designed for combined (radial and axial) loads. The specific contact angle determines their axial load capacity, typically in one direction. They are often used in pairs or sets for increased axial rigidity and load distribution.
3. Self-Aligning Ball Bearings: Featuring two rows of balls and a common concave sphered raceway in the outer ring, these bearings are uniquely adapted to applications where shaft misalignment or deflection may occur, preventing premature failure.
4. Thrust Ball Bearings: Specifically designed to carry purely axial loads in one or both directions. They are not intended for significant radial loads and are commonly found in applications with low-to-moderate speeds.

B. Roller Bearings: Robustness and High Load Capacity Roller bearings employ cylindrical, tapered, or spherical rollers as their rolling elements, offering a larger contact area than ball bearings. This characteristic makes them inherently suited for applications involving heavy loads and shock conditions.

1. Cylindrical Roller Bearings: Feature rollers with a cylindrical shape, offering high radial load capacity and suitability for high speeds. Their design allows for axial displacement between rings in certain variants, making them ideal for accommodating thermal expansion.
2. Tapered Roller Bearings: Equipped with tapered inner and outer ring raceways and rollers, these bearings are masters at accommodating both heavy radial and axial loads simultaneously. They are commonly used in pairs in applications like wheel hubs.
3. Spherical Roller Bearings: With two rows of rollers and a common sphered outer ring raceway, these are incredibly robust bearings. They are designed to withstand extremely heavy radial loads and significant axial loads in both directions, while also compensating for considerable misalignment.
4. Needle Roller Bearings: Distinguished by their very small diameter rollers relative to their length, these bearings offer a very compact cross-section. They are perfect for applications where radial space is limited but high load capacity is required.
5. Thrust Roller Bearings: Designed for very heavy axial loads, these are the rolling bearing equivalent of thrust ball bearings, but with superior capacity due to their roller elements. They come in cylindrical, tapered, and spherical roller variants.
6. Full Complement Cylindrical Roller Bearings: Unlike standard cylindrical roller bearings, these lack a cage, allowing for the maximum possible number of rollers. This design provides exceptionally high radial load capacity but typically operates at lower speeds.
7. CARB® Toroidal Roller Bearings: An innovative, proprietary design that combines the self-aligning capabilities of spherical roller bearings with the axial displacement functionality of cylindrical roller bearings. This makes them ideal for applications with heavy radial loads where axial expansion/contraction and potential misalignment are factors.

II. Specialized Rolling Bearing Solutions for Demanding Applications

Beyond the fundamental types, the industry offers a powerful array of specialized rolling bearings and units, engineered to meet unique operating conditions, environmental challenges, or specific application demands.

• Bearing Units: These are integrated solutions, typically comprising a rolling bearing, housing, seals, and often lubrication, providing a complete, ready-to-mount assembly that simplifies installation and ensures protection.
• High-Performance Bearings: Engineered for the most demanding applications, these bearings boast enhanced durability, extended service life, and often higher speed capabilities through optimized designs and materials. This category includes advanced designs like Hybrid Bearings, which combine steel rings with ceramic rolling elements for improved electrical insulation, higher speed, and exceptional longevity in contaminated or high-temperature environments.
• Bearings for High/Extreme Temperatures: Constructed from special materials with unique internal designs, these rolling bearings can operate reliably beyond the conventional temperature limits of standard bearings, critical for furnace rollers or aerospace applications.
• Insulated Bearings: Equipped with a special ceramic coating on one of their rings, these rolling bearings effectively prevent the passage of electric current, protecting machinery from damaging electrical erosion and premature bearing failure.
• Sensor Bearings: Integrating advanced sensor technology (e.g., for speed, direction, temperature, vibration) directly into the rolling bearing unit, they provide real-time data for advanced condition monitoring, predictive maintenance, and control systems.
• Thin Section Bearings: Designed with a very small cross-section relative to their bore diameter, these rolling bearings are crucial for applications where weight and radial space are extremely limited, such as robotics or aerospace.
• Miniature Bearings: These extremely small rolling bearings are vital components in precision instruments, medical devices, and other compact equipment where diminutive size and high precision are paramount.
• Stainless Steel Bearings: Offering enhanced corrosion resistance, these rolling bearings are specifically designed for applications in humid, wet, or chemically aggressive environments, common in food processing, marine, or medical industries.
• Plastic Bearings: Utilized in applications where lightweight, chemical resistance, non-magnetic properties, or quiet operation are critical, and traditional steel bearings are unsuitable. These often incorporate rolling elements or are used in conjunction with them in system designs.
• Split Bearings: Uniquely designed as two halves, these rolling bearings significantly simplify installation and replacement, particularly in difficult-to-access locations or where machinery cannot be easily dismantled, minimizing downtime.
• Slewing Bearings: These are large-diameter rolling bearings, typically incorporating multiple rows of balls or rollers, designed to accommodate significant axial, radial, and moment loads. They enable smooth, powerful rotation in heavy machinery like excavators, cranes, and wind turbines.

III. Beyond Rotary: Rolling Elements in Linear Motion

While the primary focus of rolling bearings is rotary motion, it's essential to acknowledge that the principle of rolling elements is also fundamental to Linear Motion Products. These systems, while distinct from traditional rotary bearings, utilize rolling elements (balls or rollers) within linear guides, slides, or screws to facilitate smooth, precise, and low-friction movement along a linear path.

Conclusion

The comprehensive classification of rolling bearings reveals a world of precision engineering, each type meticulously crafted to address specific operational demands. From the versatile deep groove ball bearing to the heavy-duty slewing bearing and the highly specialized insulated bearing, understanding these distinctions is key to optimizing machine performance, extending component life, and ensuring operational reliability across every industry.

When selecting a rolling bearing for your next project, remember that the right choice transcends mere fit; it involves selecting a precision component engineered to perfectly meet the unique challenges of your application, driving efficiency, durability, and innovation.

---

Disclaimer: This article provides general industry guidelines based on common practices and publicly available information regarding rolling bearing classifications. Specific product datasheets and technical specifications provided by manufacturers always supersede these general recommendations. Always consult the latest documentation for the exact components you intend to use.
