The Heart of the DC-Link: Why EPCOS B43564 "Long Life" Capacitors Are the Standard for Industrial Inverters

In high-power industrial electronics, the aluminum electrolytic capacitor is often the component that determines the overall lifespan of the system. For engineers designing frequency converters or uninterruptible power supplies (UPS), the EPCOS B43564 series represents the gold standard in reliability.

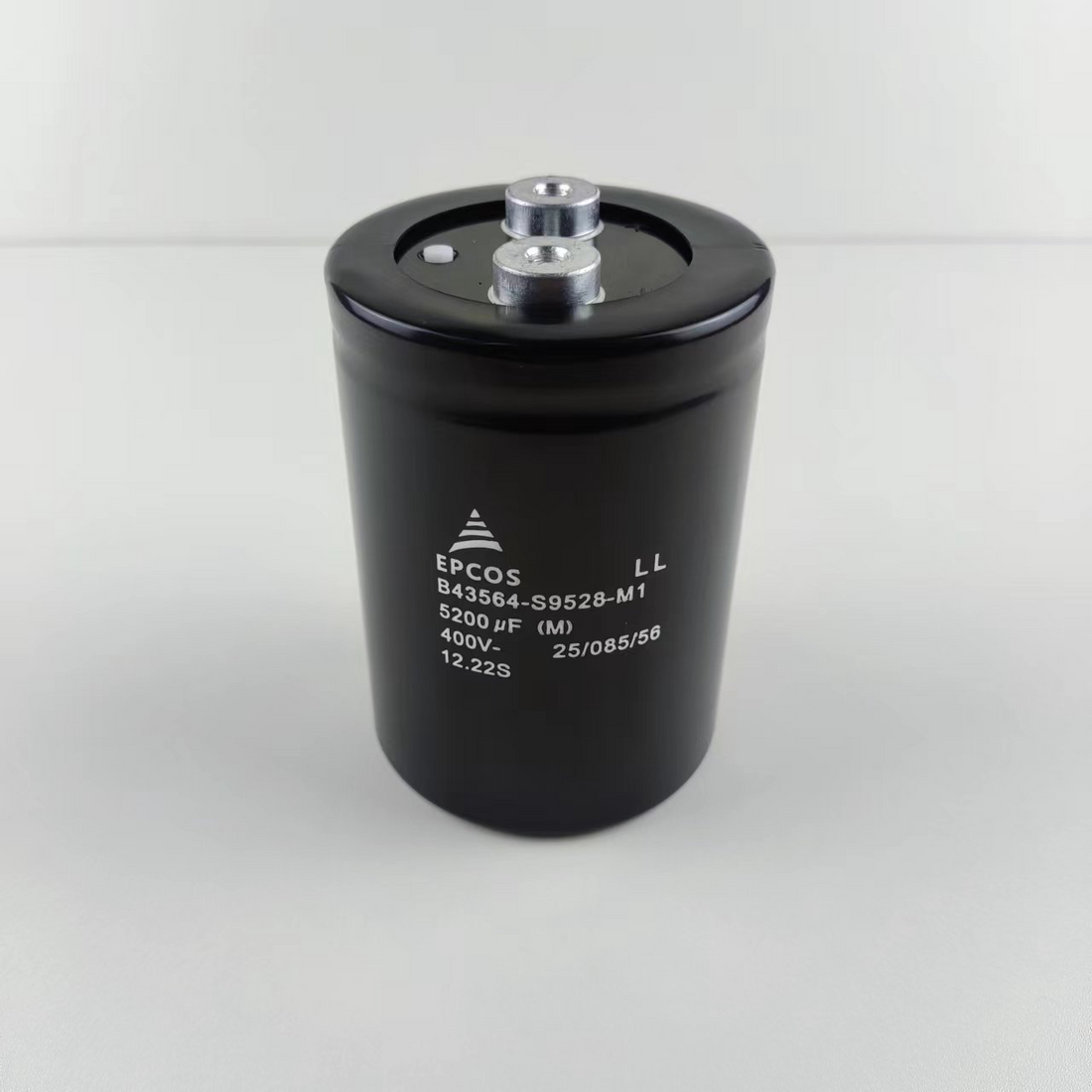

Let’s decode the technical excellence behind the B43564-S9528-M1 (5200 µF, 400V) shown above:

1. The "LL" Advantage: Engineered for Longevity

The "LL" marking on the casing stands for Long Life. Unlike standard capacitors, the B43564 series is designed to handle continuous operation under high ripple current conditions.

• Operating Temp: The 25/085/56 rating indicates a stable performance up to 85°C.
• Reliability: In many industrial environments, replacing a failed capacitor bank costs ten times more in downtime than the component itself. The B43564 minimizes this Total Cost of Ownership (TCO).

2. Technical Specs that Matter: 5200 µF @ 400V

A capacitance of 5200 µF combined with a 400V rating makes this unit ideal for DC-link applications.

• High Ripple Current Capability: The screw terminal design isn't just for secure mounting; it’s built to minimize ESR (Equivalent Series Resistance) and manage the massive heat generated by rapid charge/discharge cycles.
• Safety Vent: Note the small white plug on the top—this is a sophisticated safety vent designed to prevent casing rupture in extreme overload conditions.

3. Why B43564-S9528-M1?

This specific "S" suffix often denotes a customized or specialized terminal/mounting configuration within the B43564 family, ensuring a perfect fit for specific European and American inverter chassis (like those from Siemens or ABB).

4. Sourcing with Confidence: Authenticity is Key

In the global market, high-spec capacitors like EPCOS/TDK are prime targets for counterfeiting. A "refurbished" or fake capacitor can lead to catastrophic board-level fires.

At Apexon Supply, we leverage our deep roots in the global electronics supply chain—specifically our access to TDK/EPCOS's Tier-1 manufacturing hubs in China—to provide our clients with 100% authentic, factory-fresh components. We don't just ship parts; we provide the peace of mind that your industrial assets are protected by genuine German-engineered technology.
