The Power of Integration: Understanding Mounted Bearings and Bearing Housings

While individual rolling bearings are the unsung heroes of rotary motion, their true potential is often unlocked when integrated into complete systems designed for specific application environments. This is where mounted bearings (often referred to as bearing units) and bearing housings come into play. These solutions offer more than just support; they provide protection, simplified installation, and enhanced reliability for a vast array of industrial machinery.

For engineers, maintenance professionals, and designers, understanding the distinct classifications and benefits of these combined components is crucial for optimizing machine performance, reducing downtime, and ensuring long-term operational efficiency. A leading global manufacturer in the field offers an extensive range of mounted bearings and bearing housings, each meticulously engineered to meet diverse needs, from heavy-duty industrial applications to those requiring precise, hygienic operation.

Let's explore the key categories of these integrated bearing solutions.

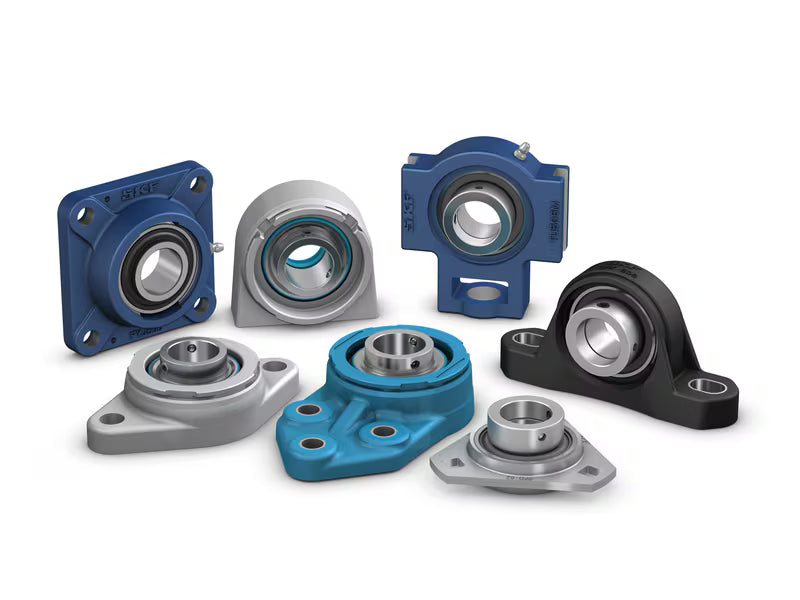

I. Mounted Bearing Units: The Ready-to-Install Advantage

Mounted bearing units are essentially complete, pre-assembled bearing arrangements designed for direct mounting onto a machine frame or structure. They typically consist of a plain or self-aligning insert bearing, an outer housing (often cast iron, pressed steel, or composite material), and integrated seals. This "unitized" approach offers significant benefits:

• Simplified Installation: Pre-lubricated and sealed, they eliminate the need for complex assembly, alignment, and separate sealing procedures.
• Protection: The robust housing and integral seals provide excellent protection against contaminants (dust, water, chemicals) and retain lubricant, extending operating life.
• Misalignment Compensation: Many units feature insert bearings with spherical outer rings that can compensate for initial misalignment of the shaft and housing.
• Varied Locking Methods: Commonly include setscrew locking, eccentric locking collars, or adapter sleeves to secure the bearing to the shaft.

Mounted bearing units are primarily categorized by the type of rolling element they incorporate and the style of their housing:

A. Mounted Ball Bearing Units: These units typically use a deep groove ball bearing as the insert, often with a spherical outer diameter. They are versatile and widely used for lighter to moderate loads and higher speeds, due to the ball bearing's inherent low friction and speed capabilities.

• Pillow Block Units (Plummer Block Units): The most common type, featuring a base designed for mounting onto a flat surface parallel to the shaft. Ideal for conveyor systems, fans, and agricultural machinery.
• Flanged Units: Equipped with a flange for mounting to a machine's side wall, perpendicular to the shaft. Available in various shapes (e.g., 2-bolt, 3-bolt, 4-bolt round/square), suitable for applications like mixing equipment or fan units.
• Take-Up Units: Designed with grooves in the housing to slide within a tensioner or take-up frame, allowing for shaft adjustment and belt tensioning, common in conveyor systems.
• Cartridge Units: Cylindrical outer diameter for mounting into a bore, offering a compact solution.
• Engineered/Speciality Units: This category includes solutions for specific challenges, such as:
  • High-Temperature Units: Designed for extreme heat applications.
  • Corrosion-Resistant Units: Often made from stainless steel or composite materials for wet or harsh environments.
  • Quiet Running Units: Optimized for low noise operation.
  • Units for Food & Beverage: Hygienic designs requiring frequent wash-downs.

B. Mounted Roller Bearing Units: Designed for heavy-duty applications, these units typically incorporate spherical roller bearings. They offer exceptionally high radial and axial load capacities and are capable of compensating for significant misalignment and shaft deflection.

• Mounted Spherical Roller Bearing Units: Robust and highly adaptable, these units are ideal for demanding applications with heavy loads, shock, and vibration, such as mining equipment, papermaking machinery, and crushers.
• Mounted Tapered Roller Bearing Units: Used where combinations of high radial and axial loads need to be managed effectively.

II. Bearing Housings: The Foundation for Custom Solutions

Unlike mounted units (which are complete assemblies), bearing housings are standalone components designed to accommodate individual rolling bearings (often spherical roller bearings or self-aligning ball bearings). They provide structural support for the bearing, facilitate mounting, protect against contaminants, and establish a space for lubrication. This approach offers flexibility for custom bearing arrangements.

Bearing housings are typically made from cast iron or ductile iron for robust performance and are available in various designs:

A. Plummer Block Housings (Pillow Block Housings): These are the most common type and are split (two halves) or non-split. They are designed for mounting on a flat surface and are typically used with spherical roller bearings or self-aligning ball bearings, often mounted on adapter sleeves.

• Split Plummer Block Housings: Composed of two separate pieces (base and cap), these housings allow for easy bearing installation and disassembly, especially for shafts that cannot be readily uncoupled. This significantly simplifies maintenance procedures.
• Non-Split Plummer Block Housings: A single, solid piece, offering rigidity and a compact design, suitable for applications where the shaft can be easily inserted.

B. Flanged Housings: Designed for bolt-on mounting to a machine's side frame, they provide rigid support for the bearing and are used when a through-shaft design is present.

C. Take-Up Housings: Similar to take-up units, these housings feature guide grooves for linear adjustment, enabling the tensioning of belts or chains in conveyor and drive systems.

D. Compact & Special Designs: Includes smaller, more specialized housings for unique installation requirements or environments.

III. Insert Bearings: The Heart of Many Integrated Solutions

While often discussed as part of mounted units, insert bearings are critical components themselves. These are typically deep groove ball bearings (or sometimes specific roller bearings) with a spherical outer ring that allows them to be seated in a complementary spherical bore within a housing. They often feature an extended inner ring to facilitate mounting to the shaft and specialized locking mechanisms (like setscrews or eccentric collars) to simplify installation and provide a secure fit without the need for an interference fit. Integrated seals are also a common feature.

The Holistic Advantage: Why Choose Integrated Bearing Solutions?

The widespread adoption of mounted bearings and bearing housings underscores their significant advantages:

• Reduced Installation Complexity: Pre-assembled and ready to mount, they save valuable installation time and reduce the likelihood of assembly errors.
• Enhanced Reliability: Integrated seals and appropriate lubrication minimize contamination and wear, leading to longer service life and reduced maintenance needs.
• Space-Saving Designs: Many units are engineered for compactness, fitting into tight spaces.
• Versatility: A wide range of types and sizes allows for optimal component selection for virtually any industrial application.
• Cost-Effectiveness: While the initial cost might be slightly higher than individual components, the reduced installation time, extended life, and minimal maintenance often result in lower total cost of ownership.
• Standardization: Many designs adhere to international standards, facilitating interchangeability and global availability.

Conclusion

Mounted bearings and bearing housings represent a strategically advantageous approach to rotary motion management. By understanding the distinct roles of mounted units, standalone housings, and their associated insert bearings, engineers and maintenance professionals can make informed decisions that significantly contribute to the efficiency, reliability, and longevity of industrial equipment. When your application demands a robust, easy-to-install, and protective bearing solution, exploring these integrated offerings is an essential step towards optimal performance.

---
