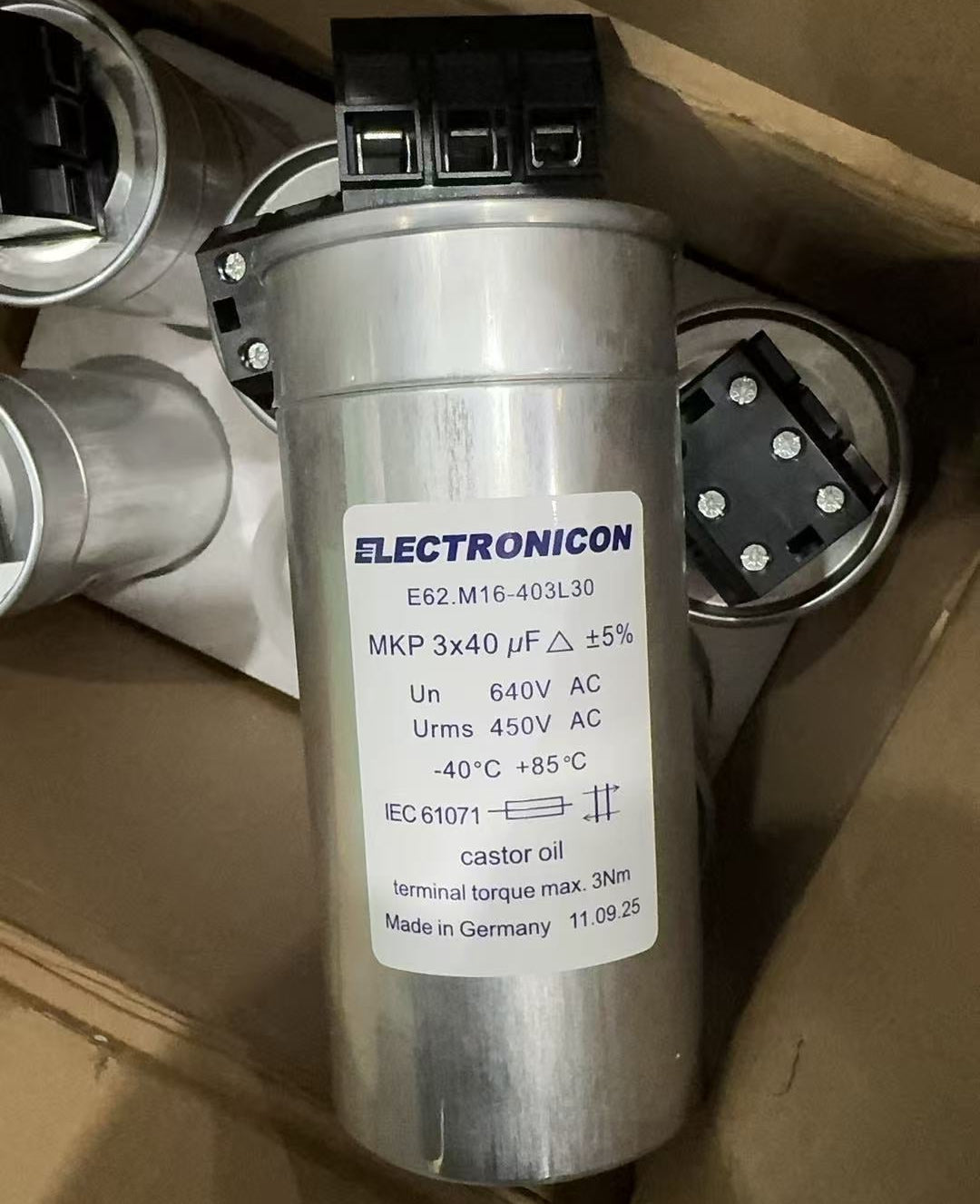

Electronicon E62.M16-403L30 3-Phase MKP AC Capacitor, 3x40µF, 640V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Electronicon E62.M16-403L30 is a heavy-duty 3-phase MKP AC filter capacitor designed for industrial power electronics, harmonic filtering, wind power systems, UPS equipment, inverters, drives, and electrical control cabinets. This model features 3 × 40 µF delta-connected capacitance, 640V AC rated voltage, 450V RMS voltage, self-healing MKP dielectric, plant oil filling, CAPAGRIP™ screw terminals, and integrated BAM™ overpressure protection.
| Product ID (MPN) | E62.M16-403L30 |
| Brand | Electronicon |
| Series / Type | E62-3ph Heavy Duty Three-Phase AC Filter Capacitor |
| Product Category | 3-Phase MKP AC Filter Capacitor |
| Capacitance | 3 × 40 µF |
| Connection Type | Delta Connection |
| Rated Voltage | 640 V AC |
| Rated RMS Voltage | 450 V |
| Surge Voltage | 1380 V |
| Maximum Continuous Current | 3 × 56 A |
| Surge Current | 1.1 kA |
| Short Circuit Current | 3.3 kA |
| Series Resistance | 3 × 1.2 mΩ |
| Self Inductance | 130 nH |
| Thermal Resistance | 4.7 K/W |
| Capacitance Tolerance | ±5% |
| Dimensions | 75 × 164 mm |
| Design / Terminal | L3 CAPAGRIP™ Screw Terminal, 2 × 25 mm², M5, TORX T20 |
| Terminal Maximum Current | 56 A |
| Weight | 0.8 kg |
| Case / Filling | Aluminum Can / Plant Oil, Non-PCB |
| Internal Protection | Break-Action Mechanism, BAM™ |
| Mounting Position | Terminals Pointing Upwards, Vertical Installation |
| Terminal Protection Rating | IP20 |
| Standards | IEC 61071, UL810, CSA 22.2 No.190 |
This Electronicon E62-3ph capacitor is commonly used in AC filter circuits, harmonic filtering systems, wind power converters, UPS equipment, industrial drives, inverters, frequency converters, power electronics cabinets, and high-reliability electrical systems. It is suitable for maintenance, repair, replacement sourcing, and equipment refurbishment projects where exact electrical ratings, terminal configuration, dimensions, and installation direction are important.
Apexon Supply supports B2B sourcing for Electronicon capacitors and hard-to-find industrial capacitor parts. If you are replacing an existing capacitor, please provide the part number, capacitance, voltage rating, photos of the nameplate, terminal type, dimensions, quantity, and equipment information. Our team can help check availability, technical specifications, and possible replacement options.
For RFQ, bulk purchasing, proforma invoice, bank wire payment, or international delivery support, please contact our sales team.
