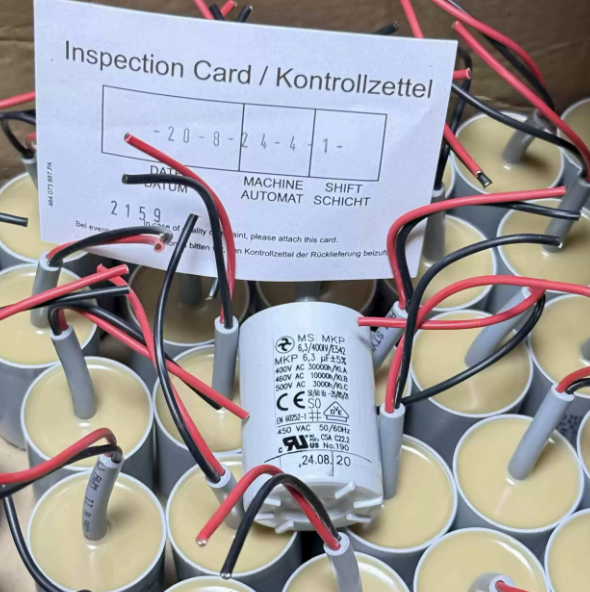

Hydra MS MKP 6.3/400 IV/E542 Motor Run Capacitor, 6.3uF 400VAC-500VAC, ±5%
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hydra MS MKP 6.3/400 IV/E542 is a premium metallized polypropylene motor run capacitor engineered for high-reliability AC motor applications. Featuring a self-healing dielectric and robust German-made construction, it offers exceptional longevity with a 30,000-hour service life at 400VAC, making it ideal for industrial pumps, fans, and household appliances.
| Product ID (MPN) | MS MKP 6.3/400 IV/E542 |
| Capacitance | 6.3 µF |
| Tolerance | ±5% (J) |
| Rated Voltage (Class A) | 400 VAC (30,000h) |
| Rated Voltage (Class B) | 460 VAC (10,000h) |
| Rated Voltage (Class C) | 500 VAC (3,000h) |
| Frequency | 50/60 Hz |
| Dimensions | Ø 35 mm x 48 mm |
| Lead Length | 100 mm |
| Dielectric Material | Metallized Polypropylene (MKP) |
| Safety Class | S0 (EN 60252-1) |
| Operating Temperature | -25°C to +85°C |
| Country of Origin | Germany |
