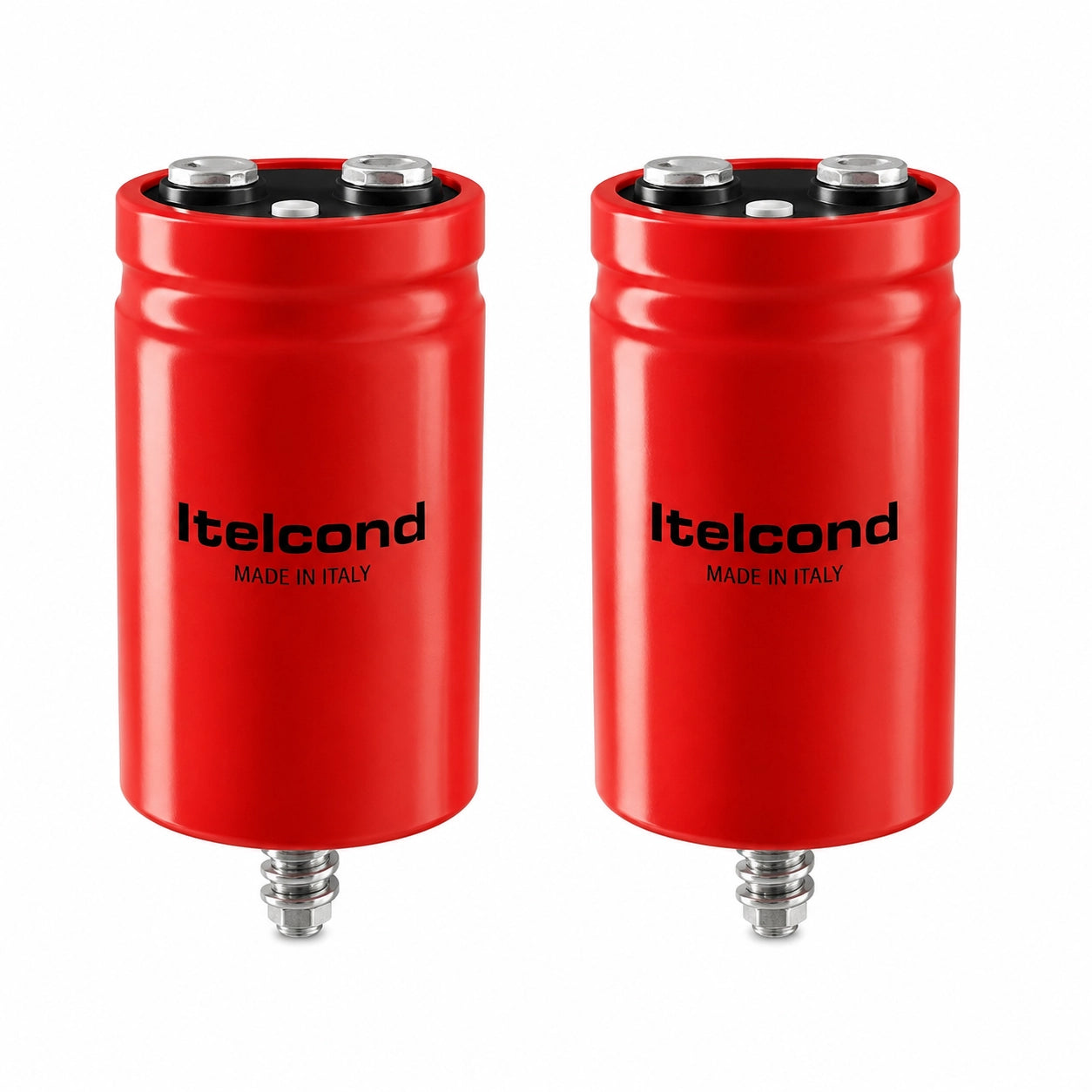

ITELCOND AY(U)X-HR333X063BC1 Aluminum Electrolytic Capacitor, 33000uF, 63V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ITELCOND AY(U)X-HR333X063BC1 is an AY(U)X-HR series screw-terminal aluminum electrolytic capacitor rated at 33000 µF and 63 V DC. Its ordering code specifies -10%/+30% capacitance tolerance, BC case code and sleeved construction. The BC case measures 51 x 105 mm.
| Ordering Code | AY(U)X-HR333X063BC1 |
| Series | AY(U)X-HR |
| Capacitance | 33000 µF |
| Rated Voltage | 63 V DC |
| Capacitance Tolerance | -10% / +30% |
| Case Code | BC |
| Case Size | 51 x 105 mm |
| Terminal Type | Screw |
| Mounting Designation | AY = Flat Bottom; AYU = Mounting Stud |
| Temperature Range | -40°C to +85°C |
| Climatic Category | 40/85/56 |
Apexon Supply provides B2B sourcing and replacement support for ITELCOND AY(U)X-HR333X063BC1. Buyers should verify the exact ordering code, capacitance, voltage, tolerance, BC case dimensions and required AY flat-bottom or AYU mounting-stud configuration before replacement.
For RFQ support, submit ITELCOND AY(U)X-HR333X063BC1, required quantity and mounting configuration requirements. Most qualified RFQs receive a response or quote within 12 hours.
