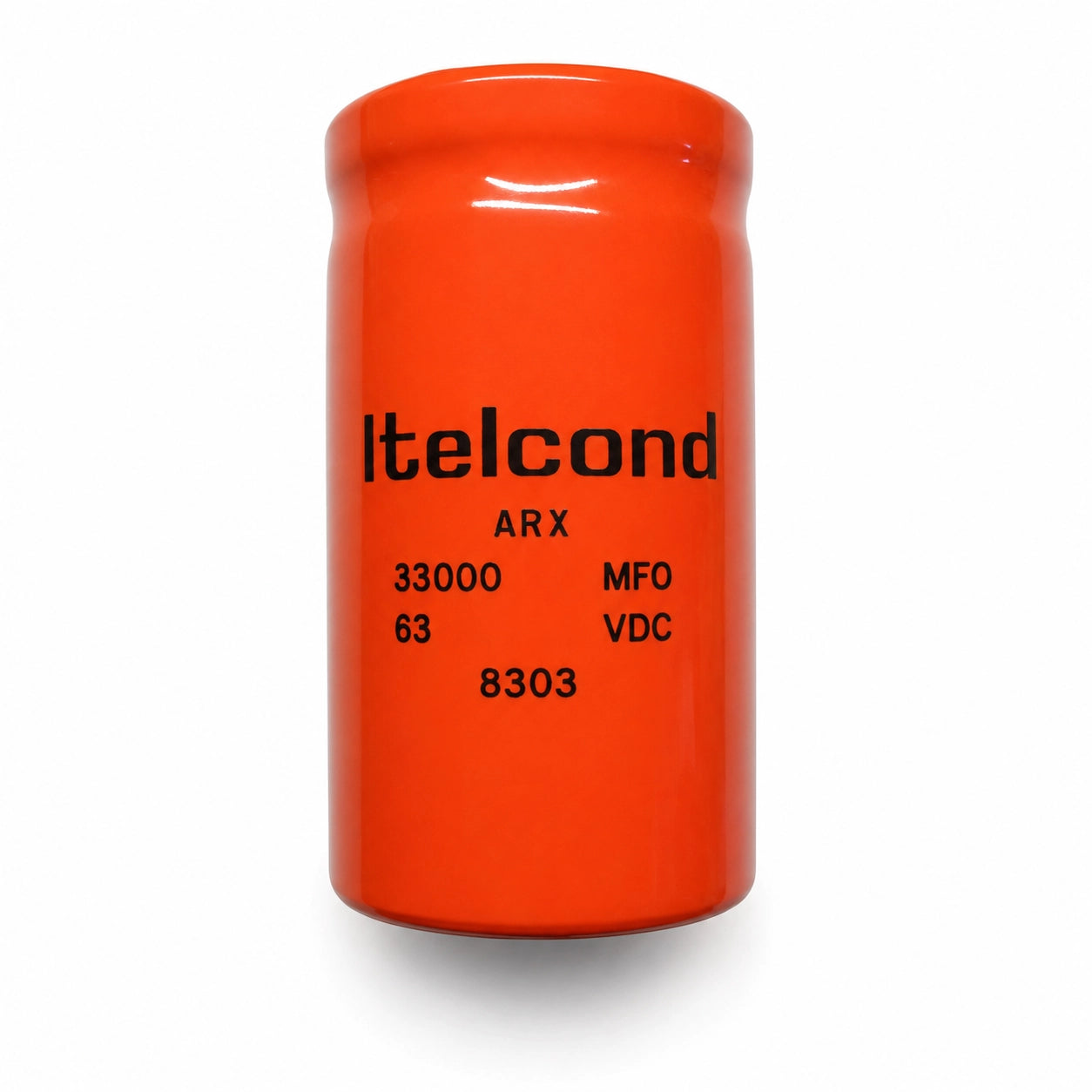

Itelcond AY(U)X-HR333X063CC1 Aluminium Electrolytic Capacitor, 33000µF 63V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Itelcond AY(U)X-HR333X063CC1 is an AYX-HR series aluminium electrolytic capacitor rated at 33000µF and 63V for industrial power electronics, DC filtering, energy storage, and high-ripple current applications. This flat-bottom capacitor uses screw terminals and a 63mm x 107mm aluminium case for integration into power supplies, drives, inverter systems, and equipment maintenance projects.
| Product ID / MPN | AY(U)X-HR333X063CC1 |
| Brand / Series | Itelcond AYX-HR Series |
| Category | Aluminium Electrolytic Capacitor |
| Capacitance | 33000µF at 100Hz |
| Rated Voltage | 63V |
| Capacitance Tolerance | -10% / +30% |
| Tanδ at 100Hz | 0.27% |
| ESR at 100Hz | 13 mΩ typical |
| Impedance at 10kHz | 10 mΩ |
| Rated Ripple Current | 25.8 A at 100Hz, 55°C; 18.4 A at 100Hz, 85°C |
| Maximum Leakage Current | 8316 µA at 25°C, 5 minutes |
| Operating Leakage Current | 2079 µA at 25°C, 5 minutes |
| Case Type | Flat bottom |
| Terminals | Screw type |
| Dimensions | 63mm diameter x 107mm height |
| Case Code | CC1 |
| Case Material | Aluminium |
| Sleeve | Self-extinguishing thermoshrinkable sleeve |
| Sealing | Hermetic sealing with EPR gasket and resin cover |
| Pressure Release Vent | Silicone-rubber vent |
| Operating Temperature | -25°C to +85°C |
| Climatic Category | 25/85/56 |
| Standards | CECC 30300; IEC 384-4 long life grade; MIL C62D; DIN 41240 / DIN45910 |
Typical applications include industrial power supplies, motor drives and controls, welding equipment, renewable energy inverter systems, high-end audio amplifiers, and DC filtering circuits requiring a 33000µF 63V screw-terminal aluminium electrolytic capacitor.
Apexon Supply provides B2B sourcing support for Itelcond AY(U)X-HR333X063CC1 capacitor replacement projects, procurement review, and technical alignment. Buyers should confirm capacitance, voltage, ripple current, ESR, terminal style, case dimensions, and operating temperature against the original equipment requirements before replacement.
Send the MPN, required quantity, and application details to request RFQ support for this Itelcond AYX-HR series aluminium electrolytic capacitor. Most qualified RFQs receive a response or quote within 12 hours.
