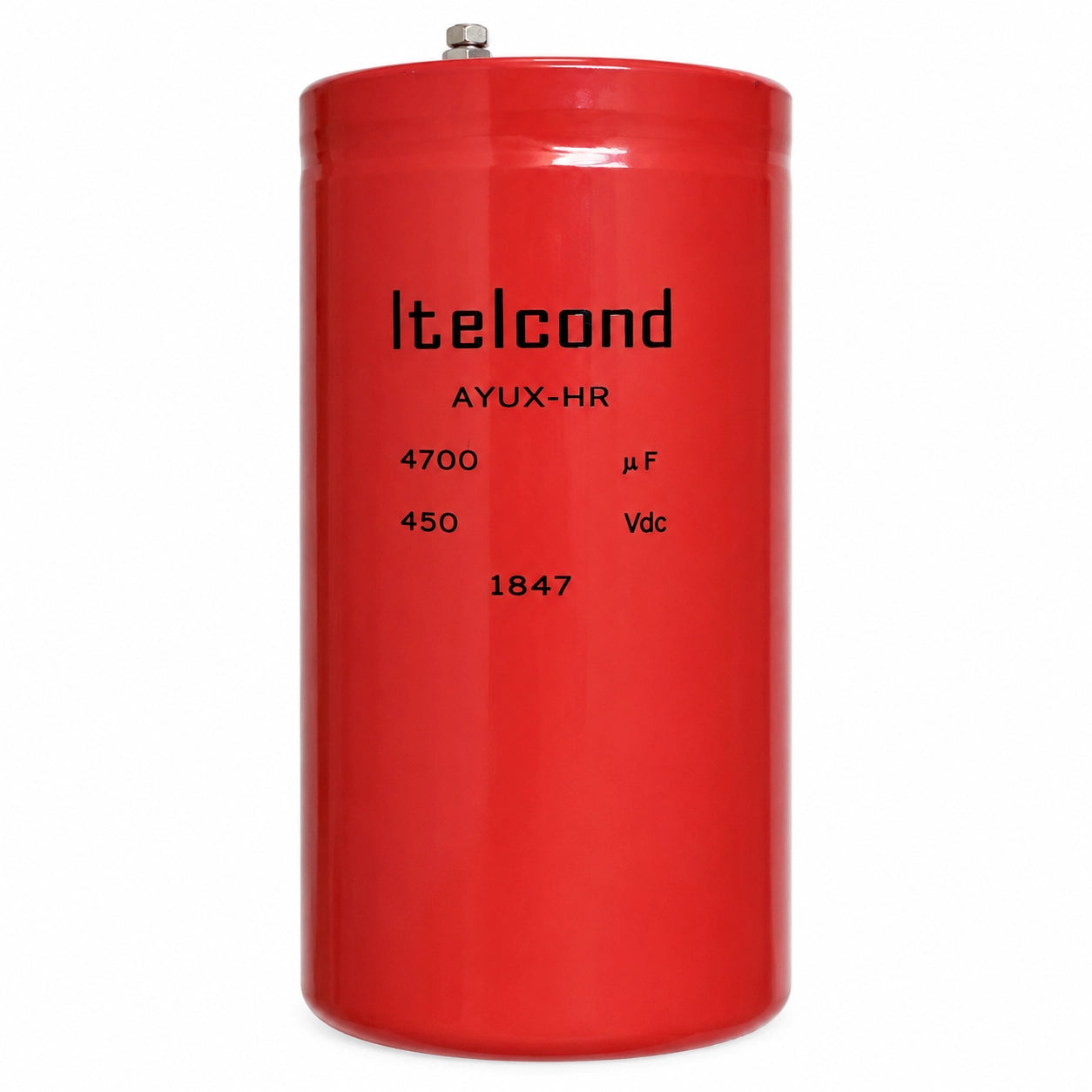

Itelcond AY(U)X-HR472X450EC1 Aluminium Electrolytic Capacitor, 4700µF, 450V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Itelcond AY(U)X-HR472X450EC1 is an AYX-HR series aluminium electrolytic capacitor for industrial power electronics, DC filtering, and energy storage applications. This capacitor is specified with 4700µF capacitance, 450V rated voltage, flat bottom construction, screw terminals, and a 65mm x 120mm case size for procurement review and replacement sourcing.
| Product ID / MPN | AY(U)X-HR472X450EC1 |
| Brand | Itelcond |
| Series | AYX-HR |
| Category | Aluminium electrolytic capacitor |
| Capacitance | 4700µF @ 100Hz |
| Rated Voltage | 450V |
| Capacitance Tolerance | -10% / +30% |
| Tanδ @ 100Hz | 0.12% |
| ESRmax @ 100Hz | 12 mΩ |
| Zmax @ 10kHz | 9 mΩ |
| Rated Ripple Current @ 100Hz, 55°C | 27.0 A |
| Rated Ripple Current @ 100Hz, 85°C | 19.3 A |
| Terminal Type | Screw terminals |
| Case Type | Flat bottom |
| Dimensions | 65mm diameter x 120mm height |
| Case Code | EC |
| Case Material | Aluminium |
| Sleeve | Self-extinguishing thermoshrinkable sleeve |
| Sealing | Hermetic sealing with EPR gasket and resin cover |
| Pressure Release Vent | Silicone-rubber pressure release vent |
| Operating Temperature Range | -25°C to +85°C |
| Climatic Category | 25/85/56 |
| Standards / Compliance | CECC 30300; IEC 384-4 long life grade; MIL C62D; DIN 41240 / DIN45910 |
Typical applications include industrial power supplies, motor drives and controls, welding equipment, inverter systems, renewable energy power electronics, and DC filtering circuits requiring 450V aluminium electrolytic capacitance with screw-terminal connection.
Apexon Supply provides B2B sourcing and replacement support for Itelcond AY(U)X-HR472X450EC1 capacitors, helping procurement teams review verified specifications and confirm technical alignment for maintenance, repair, and industrial sourcing requirements.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
