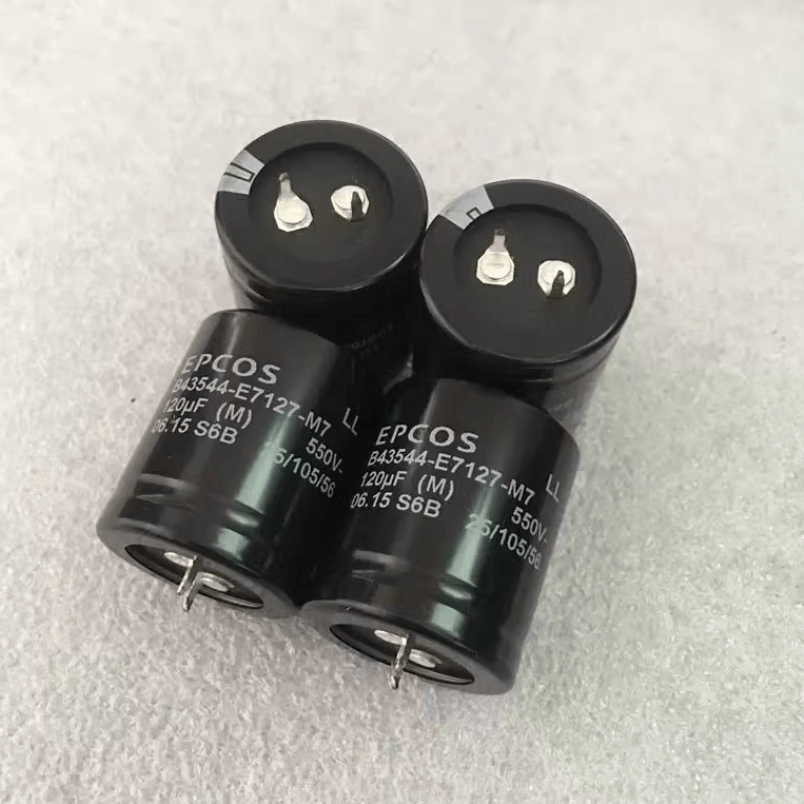

TDK B43544E7127M7 Aluminum Electrolytic Capacitor, Snap-In, 120μF, 550V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
TDK B43544E7127M007 is an aluminum electrolytic capacitor from the B43544 series, specified at 120 µF with a 550 V rated voltage. This radial can snap-in capacitor supports procurement review, replacement sourcing, and technical comparison for industrial power and electronics applications.
| Manufacturer | TDK |
| Manufacturer Product Number | B43544E7127M007 |
| Series | B43544 |
| Capacitor Type | Aluminum Electrolytic Capacitor |
| Capacitance | 120 µF |
| Rated Voltage | 550 V |
| Tolerance | ±20% |
| ESR | 970 mOhm @ 100 Hz |
| Ripple Current at Low Frequency | 940 mA @ 100 Hz |
| Impedance | 1.51 Ohms |
| Operating Temperature | -25°C to 105°C |
| Lifetime at Temperature | 3000 Hrs @ 105°C |
| Polarization | Polar |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated Max | 1.457" (37.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Typical applications include general-purpose capacitor use in industrial electronic assemblies where capacitance, rated voltage, temperature range, mounting style, and package format must match the equipment requirements.
Apexon Supply supports B2B sourcing and replacement review for TDK B43544E7127M007, helping buyers compare verified specifications and confirm technical alignment before procurement.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
