WESTCODE 069NHCK0160F NH Semiconductor Fuse, 160A, 700/690V AC, aR
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

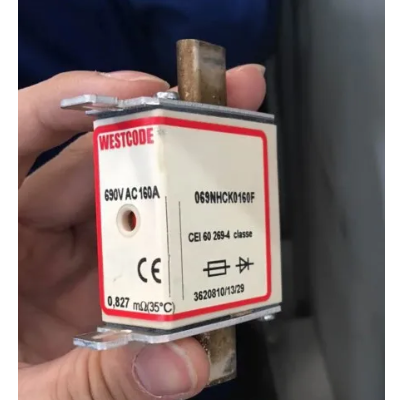

WESTCODE 069NHCK0160F is a size 000 NH square-body semiconductor protection fuse with knife-blade contacts, rated at 160A and 700/690V AC (UL/IEC). It uses an aR (URD) protection class and a flap-type indicator for industrial power-electronic circuit protection.
| Part Number | 069NHCK0160F |
| Nominal Current | 160A |
| Rated Voltage (UL/IEC) | 700/690V AC |
| Fuse Class | aR (URD) |
| Body Size | 000 (C) |
| Contact Type | Knife Blade |
| Indicator Type | Flap Type |
| Pre-arcing I²t | 2100 A²s |
| Clearing I²t at Rated Voltage | 12200 A²s |
| Power Loss at 100% In | 15W |
| Breaking Capacity at Rated Voltage | 80kA |
Typical applications include semiconductor protection in inverters, UPS systems, motor drives, and similar power-conversion equipment rated at 700/690V AC or below.
Apexon Supply provides B2B sourcing and replacement support for WESTCODE 069NHCK0160F to assist procurement teams, maintenance operations, and industrial buyers with technical alignment and lifecycle sourcing.
Submit WESTCODE 069NHCK0160F, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
