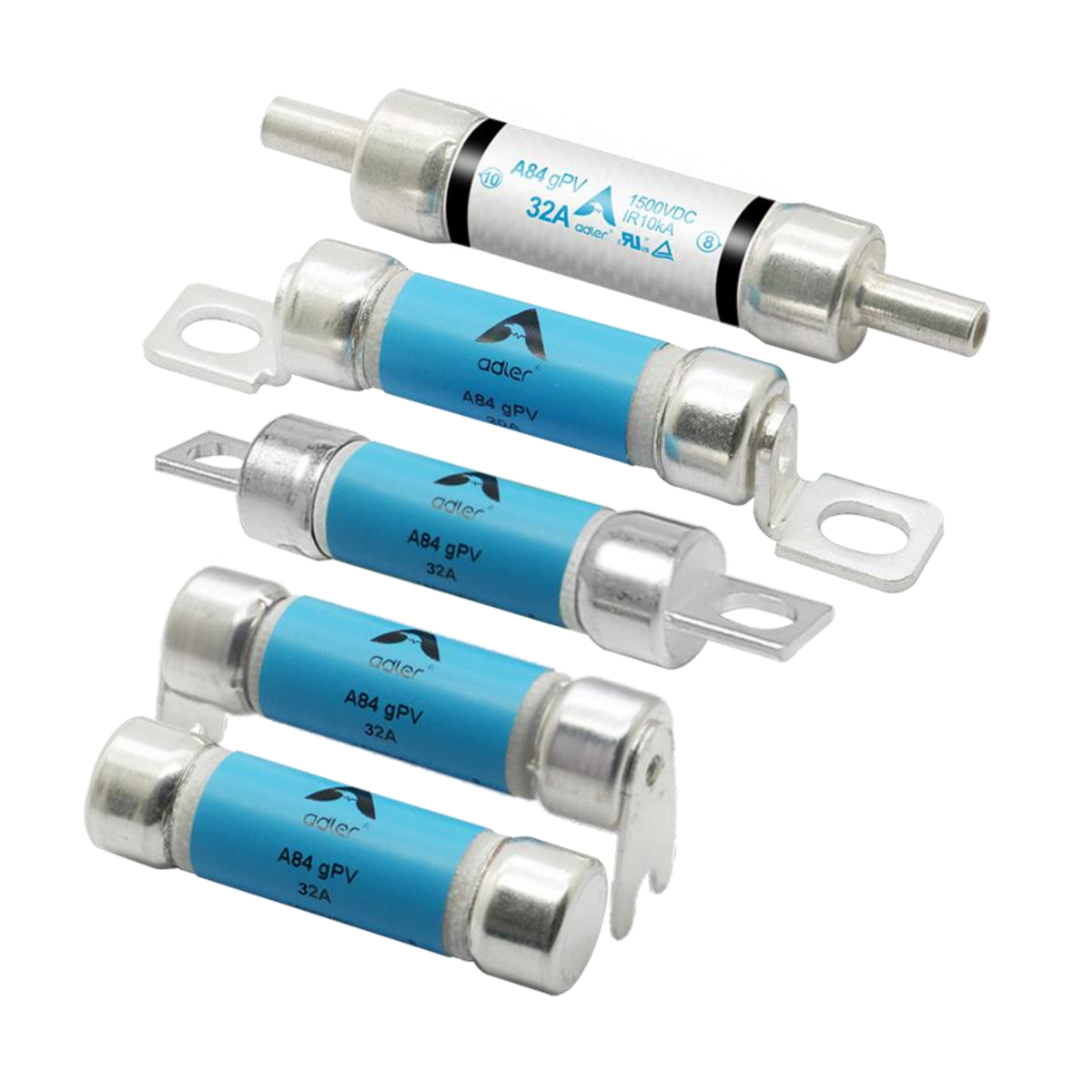

Adler A842250b00 14x51 mm PV Fuse Link, 25 A, 1500 Vdc
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Adler A842250b00 is an A84 series gPV cylindrical PV fuse link rated 25 A at 1500 Vdc. This 14x51 mm fuse link has a 30 kA breaking capacity at 1500 Vdc and a glass-fiber body for photovoltaic circuit protection applications.
| Part Number | A842250b00 |
| Series | A84 |
| Fuse Class | gPV |
| Rated Current | 25 A |
| Rated Voltage | 1500 Vdc |
| Fuse Size | 14x51 mm |
| Breaking Capacity | 30 kA @ 1500 Vdc |
| Pre-Arcing I²t | 500 A²s |
| Total I²t | 2750 A²s |
| Dimensions | 51.00 +0.6/-1 mm length; Ø14.2 ±0.2 mm |
Typical applications listed for the A84 series include PV combiner and junction boxes, inverters, and battery charge controllers.
Apexon Supply provides B2B sourcing and replacement support for Adler A842250b00, helping industrial buyers review verified specifications and technical alignment for procurement requirements.
Submit Adler A842250b00, required quantity, and application requirements to request a B2B quote and sourcing support.
