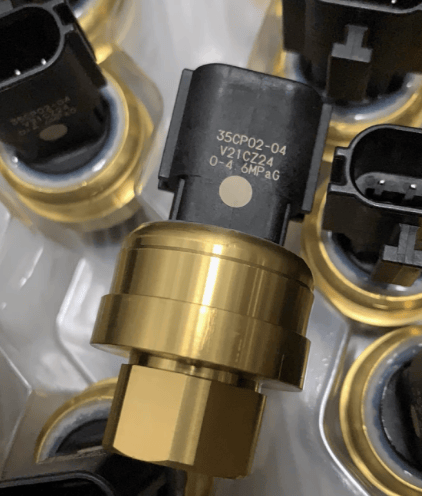

Sensata 35CP02-04 Industrial Pressure Transducer, 0-31 Bar, 4-20mA Output
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sensata 35CP02-04 is a 35CP Series industrial pressure transducer used for pressure measurement and monitoring in industrial systems. This model is identified with a 0 to 31.0 bar (450 psi) operating pressure range and a 4-20 mA current-loop output for B2B procurement review and replacement sourcing.
| Product ID | 35CP02-04 |
| Series | 35CP Series |
| Product Category | Industrial pressure transducer |
| Operating Pressure Range | 0 to 31.0 bar (450 psi) |
| Output Signal | 4-20 mA current loop |
| Supply Voltage | 8-30 VDC |
| Accuracy | ±1.0% full scale @ 25°C |
| Total Error Band | Current output: ±2.5% from -20°C to +85°C |
| Operating Temperature Range | -30°C to +100°C typical |
| Response Time | Less than 10 ms |
| Pressure Fitting | 7/16-20UNF-2B female |
| Electrical Connector | Packard Metri-Pack |
| Sealing Material | HNBR |
| Certification | RoHS, REACH, CE, UL |
Typical 35CP Series applications include compressors and water pumps, hydraulics and pneumatics, transportation and off-road vehicles, engine controls and monitors, alternative energy management, and process control and automation.
Apexon Supply supports B2B sourcing and replacement review for Sensata 35CP02-04 pressure transducers. Buyers should verify pressure range, output signal, supply voltage, fitting, connector, sealing material, and application requirements before replacement.
Send the MPN, required quantity, and operating requirements to request a B2B quote for sourcing support and technical alignment.
