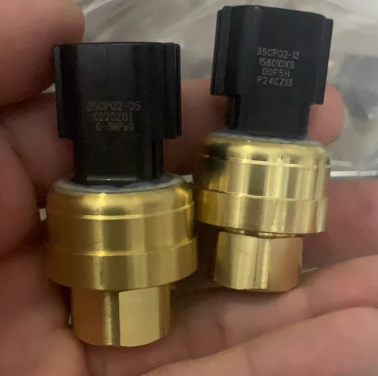

Sensata 35CP02-05 35CP Series Industrial Pressure Transducer, 0-34.5 Bar (500 PSI), 4-20mA Output
Regular price
$120.00 USD
Regular price
Sale price
$120.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sensata 35CP02-05 is a high-precision industrial pressure transducer engineered for demanding HVAC/R and automotive air conditioning systems. Utilizing micro-machined silicon strain gauge technology, this sensor provides exceptional stability and accuracy across a wide temperature range, ensuring optimal refrigerant cycle control and system protection.
| Product ID (MPN) | 35CP02-05 |
| Series | 35CP Series |
| Operating Pressure Range | 0 to 34.5 Bar (0 - 500 PSI) |
| Output Signal | 4 - 20 mA (Linear) |
| Supply Voltage | 8 - 30 VDC |
| Accuracy | ±1.0% F.S. (@25°C) |
| Electrical Connection | Packard Metri-Pack 150 Series |
| Pressure Fitting | 7/16-20UNF-2B Female (Schrader Deflator) |
| Operating Temp Range | -30°C to +100°C |
| Sealing Material | HNBR (Optimized for Refrigerants) |
