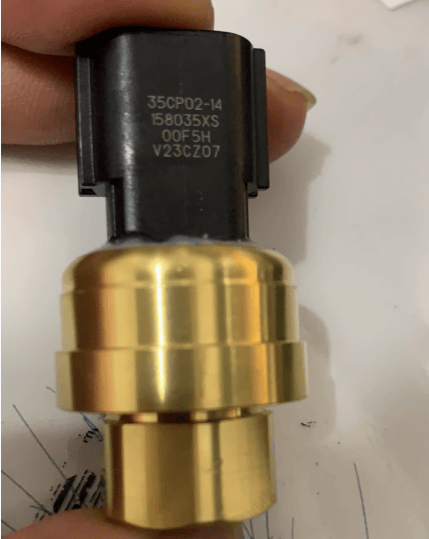

Sensata 35CP02-14 35CP Series Industrial Pressure Transducer, 0-17.2 Bar (250 PSI), 4-20mA Output
Regular price
$110.00 USD
Regular price
Sale price
$110.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sensata 35CP02-14 is a rugged industrial pressure transducer engineered for precise monitoring in air conditioning and refrigeration systems. Part of the 35CP series, this sensor utilizes advanced MEMS technology to provide a stable 4-20mA output, coupled with a female pressure fitting designed for direct mounting on standard service valves.
| Product ID (MPN) | 35CP02-14 |
| Series | 35CP Series |
| Operating Pressure Range | 0 to 17.2 Bar (0 - 250 PSI) |
| Output Signal | 4 - 20 mA Current Loop |
| Accuracy | ±1.0% Full Scale (@25°C) |
| Supply Voltage | 8 - 30 VDC |
| Pressure Fitting | 7/16-20UNF-2B Female (Schrader) |
| Electrical Connector | Packard Metri-Pack 150 |
| Operating Temp Range | -30°C to +100°C |
| Sealing Material | HNBR |
