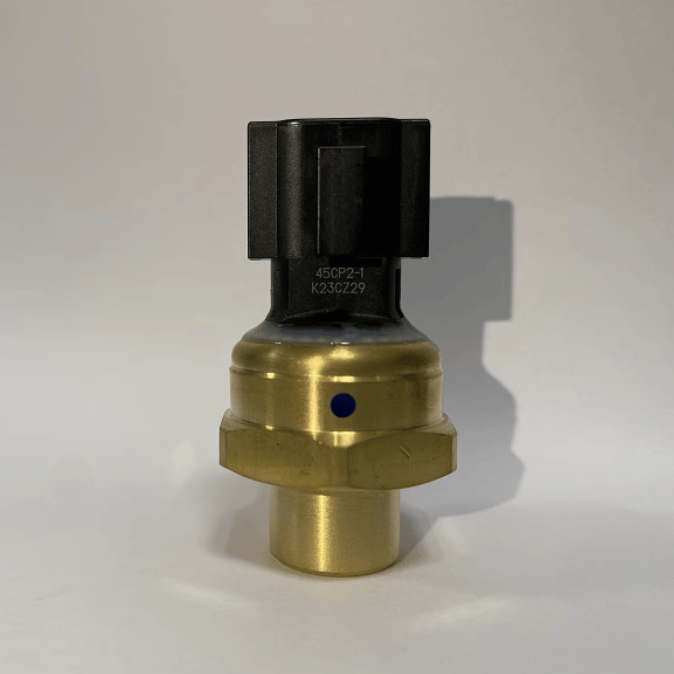

Sensata 45CP2-1 45CP Series Industrial Pressure Transducer, 0-6.10 Bar (88.5 PSI), 0.5-4.5V Ratiometric Output
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sensata 45CP2-1 is a precision-engineered industrial pressure transducer designed for the monitoring and control of low-side pressure in HVAC and refrigeration systems. Utilizing Sensata's field-proven ceramic capacitive sensing technology, this sensor provides a highly stable 0.5V to 4.5V ratiometric output, offering superior reliability and chemical resistance in modern refrigerant-based environments.
| Product ID (MPN) | 45CP2-1 |
| Series | 45CP Series |
| Pressure Range | 0 to 6.10 Bar (0 - 88.5 PSI) |
| Output Signal | 0.5 - 4.5V Ratiometric |
| Supply Voltage | 5.0 ± 0.25 VDC |
| Accuracy | ±1.2% Vcc |
| Pressure Fitting | 7/16-20UNF Female (with Schrader Deflator) |
| Electrical Connection | Packard Metri-Pack 150 Series |
| Operating Temp Range | -40°C to +135°C |
| Sensor Technology | Ceramic Capacitive |
