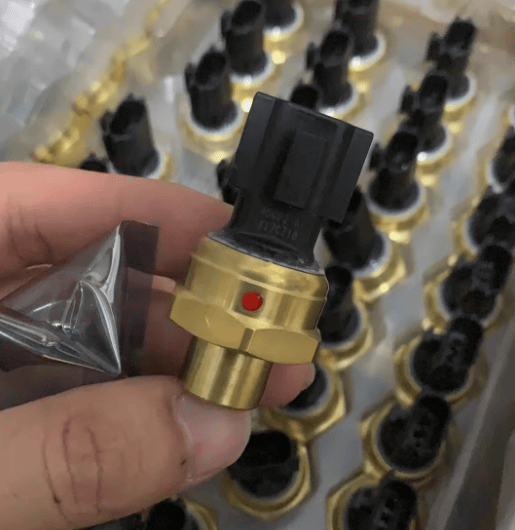

Sensata 45CP2-6 45CP Series Industrial Pressure Transducer, 0-11.72 Bar (170 PSI), 0.5-4.5V Ratiometric Output
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sensata 45CP2-6 is a precision-engineered industrial pressure transducer designed for the monitoring and control of low-side pressure in HVAC and refrigeration systems. Utilizing Sensata's field-proven ceramic capacitive technology, this sensor delivers a highly stable 0.5V to 4.5V ratiometric output, providing excellent resistance to EMI, vibration, and chemical degradation in modern refrigerant systems.
| Product ID (MPN) | 45CP2-6 |
| Series | 45CP Series |
| Pressure Range | 0 to 11.72 Bar (0 - 170 PSI) |
| Output Signal | 0.5 - 4.5V Ratiometric |
| Supply Voltage | 5.0 ± 0.25 VDC |
| Accuracy | ±1.2% Vcc |
| Pressure Fitting | 7/16-20UNF Female (with Schrader Deflator) |
| Electrical Connection | Packard Metri-Pack 150 Series |
| Operating Temp Range | -40°C to +135°C |
| Certification | RoHS, REACH Compliance |
