ALCO Controls PS3-A1S / 0715102 Pressure Switch, 1.9/2.7 bar, 3 A at 230 VAC AC-15
Regular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

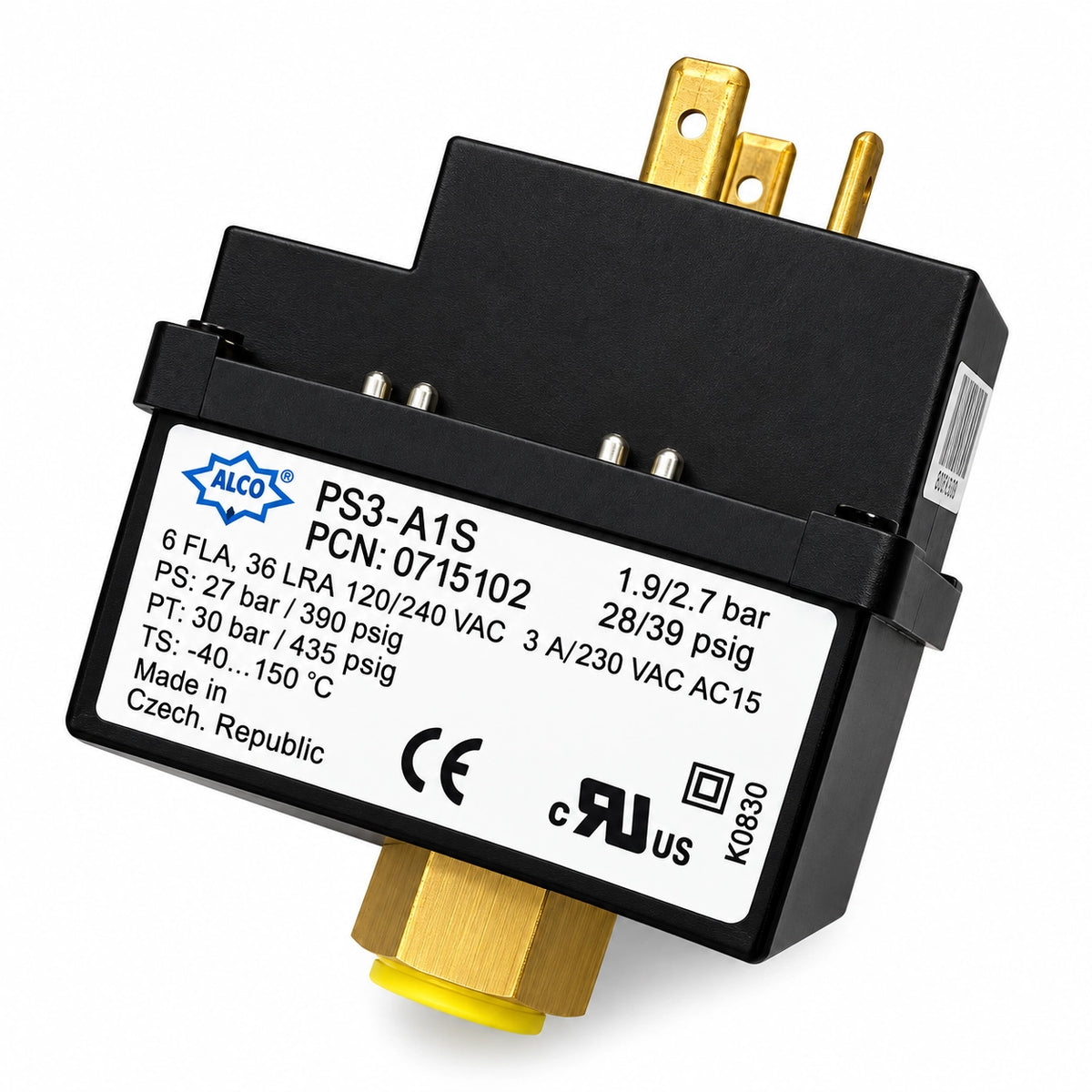

The ALCO Controls PS3-A1S, PCN 0715102, is a pressure switch with nameplate switching settings of 1.9/2.7 bar (28/39 psig). Separate motor-load and AC-15 ratings support electrical specification matching.
| Model | PS3-A1S |
| PCN | 0715102 |
| Switching settings | 1.9/2.7 bar (28/39 psig) |
| Maximum allowable pressure (PS) | 27 bar (390 psig) |
| Test pressure (PT) | 30 bar (435 psig) |
| Temperature limits (TS) | −40 to +150°C |
| Motor-load rating | 6 FLA / 36 LRA at 120/240 VAC |
| AC-15 rating | 3 A at 230 VAC |
Apexon Supply supports B2B sourcing and replacement identification. Provide the existing unit's nameplate, pressure connection details, and electrical requirements to support an accurate specification review.
Request a quotation for ALCO Controls PS3-A1S, PCN 0715102. Include the required quantity, destination, and documentation requirements.
