Alco Controls PS3-A3S / 0714534 Pressure Control, 8.5/10.5 bar, 27 bar PS
Regular price
$420.00 USD
Regular price
Sale price
$420.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

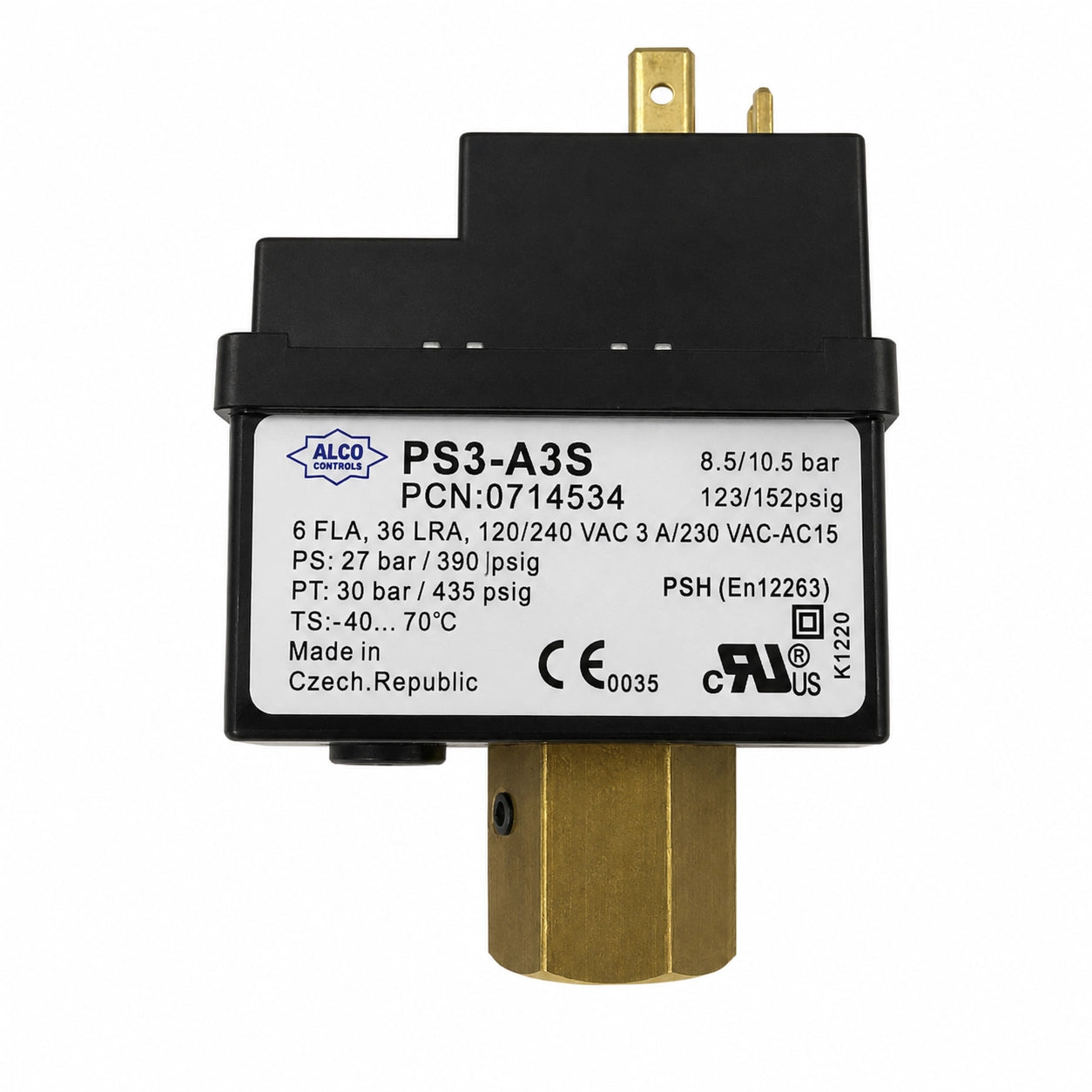

The Alco Controls PS3-A3S, PCN 0714534, is an automatic fixed-setting pressure control with switching pressures marked as 8.5/10.5 bar. The label specifies a maximum operating pressure of 27 bar and a temperature range of -40 to +70°C.
| Type | PS3-A3S |
| PCN | 0714534 |
| Function | Automatic pressure control |
| Pressure Settings | 8.5/10.5 bar; 123/152 psig |
| Maximum Operating Pressure PS | 27 bar / 390 psig |
| Test Pressure PT | 30 bar / 435 psig |
| Temperature Range TS | -40 to +70°C |
| Motor Rating | 6 FLA, 36 LRA at 120/240 VAC |
| Inductive Load | 3 A at 230 VAC, AC-15 |
| Pressure Connection | 7/16"-20 UNF female with Schrader valve opener |
| Product Marking | PSH (EN 12263) |
Apexon Supply provides B2B sourcing and replacement support for Alco Controls pressure-control components. Buyers should verify the pressure settings, electrical ratings, operating limits and pressure connection against the original equipment requirements.
Submit PS3-A3S or PCN 0714534, the required quantity and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
