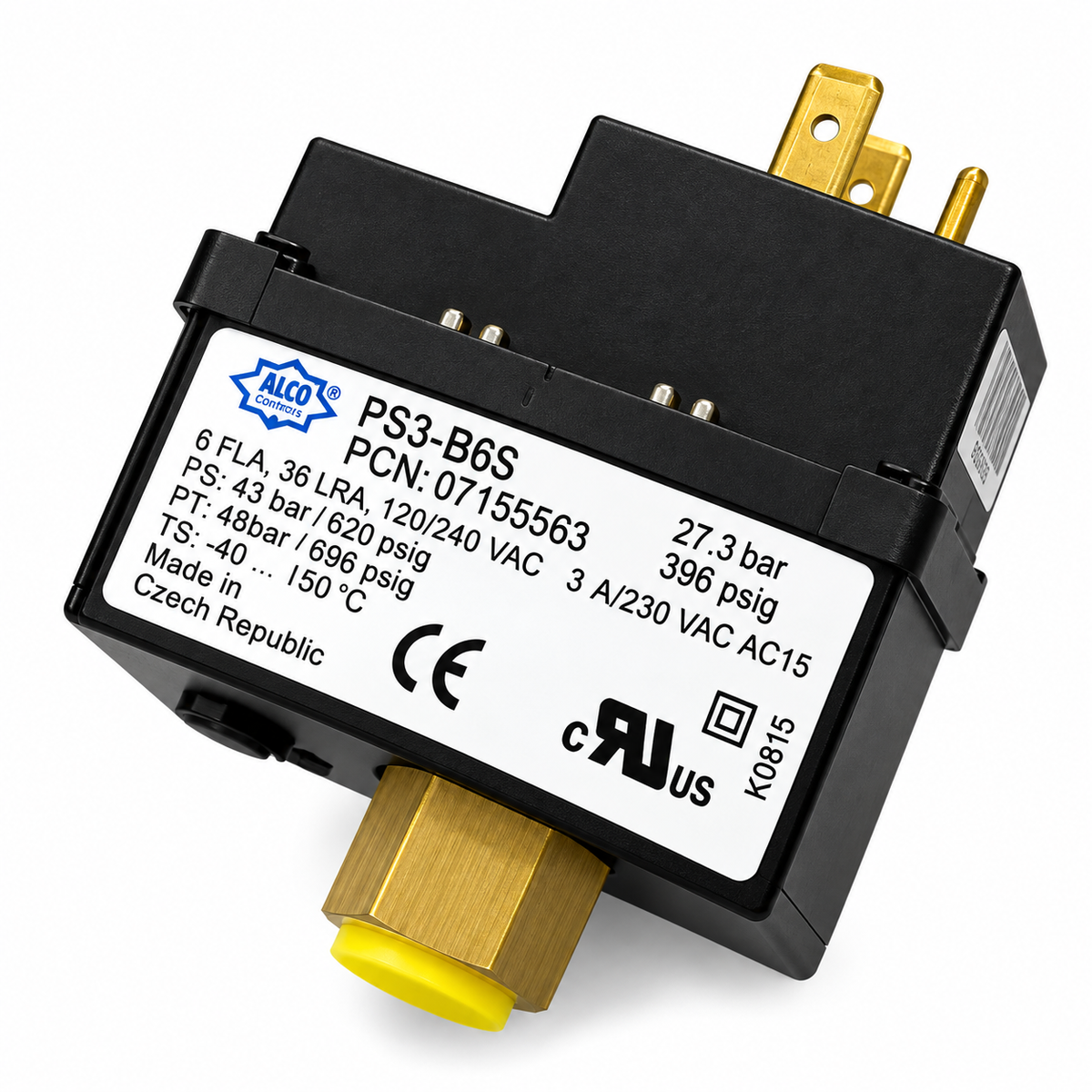

ALCO Controls PS3-B6S / 0715563 High Pressure Switch, 27.3 bar Cut-Out, Manual Reset
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ALCO Controls PS3-B6S, manufacturer Part No. 0715563, is a high pressure switch with a fixed 27.3 bar cut-out and external manual reset. Its pressure connection incorporates a Schrader opener and pulsation snubber.
| Type | PS3-B6S |
| Part No. | 0715563 |
| Cut-out pressure | 27.3 bar |
| Reset | External manual reset; pressure must fall approximately 5 bar below cut-out before resetting |
| Pressure connection | 7/16"-20 UNF female thread with Schrader opener and snubber |
| Maximum ambient temperature | +70°C |
| Maximum pressure connection temperature | +150°C |
| Motor-load rating | 6 FLA / 36 LRA at 120/240 VAC |
| AC-15 rating | 3 A at 230 VAC |
Designed for high pressure protection with direct compressor mounting. The manual reset requires operator intervention after a pressure trip.
Apexon Supply supports B2B sourcing and replacement identification. Provide the existing unit's nameplate, connection details, and electrical requirements to support specification matching.
Request a quotation for ALCO Controls PS3-B6S, Part No. 0715563. Include the required quantity, destination, and documentation requirements.
