Alco Controls PS3-B6S / 0716310 High Pressure Cut-Out, 29.5 bar, Manual Reset
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

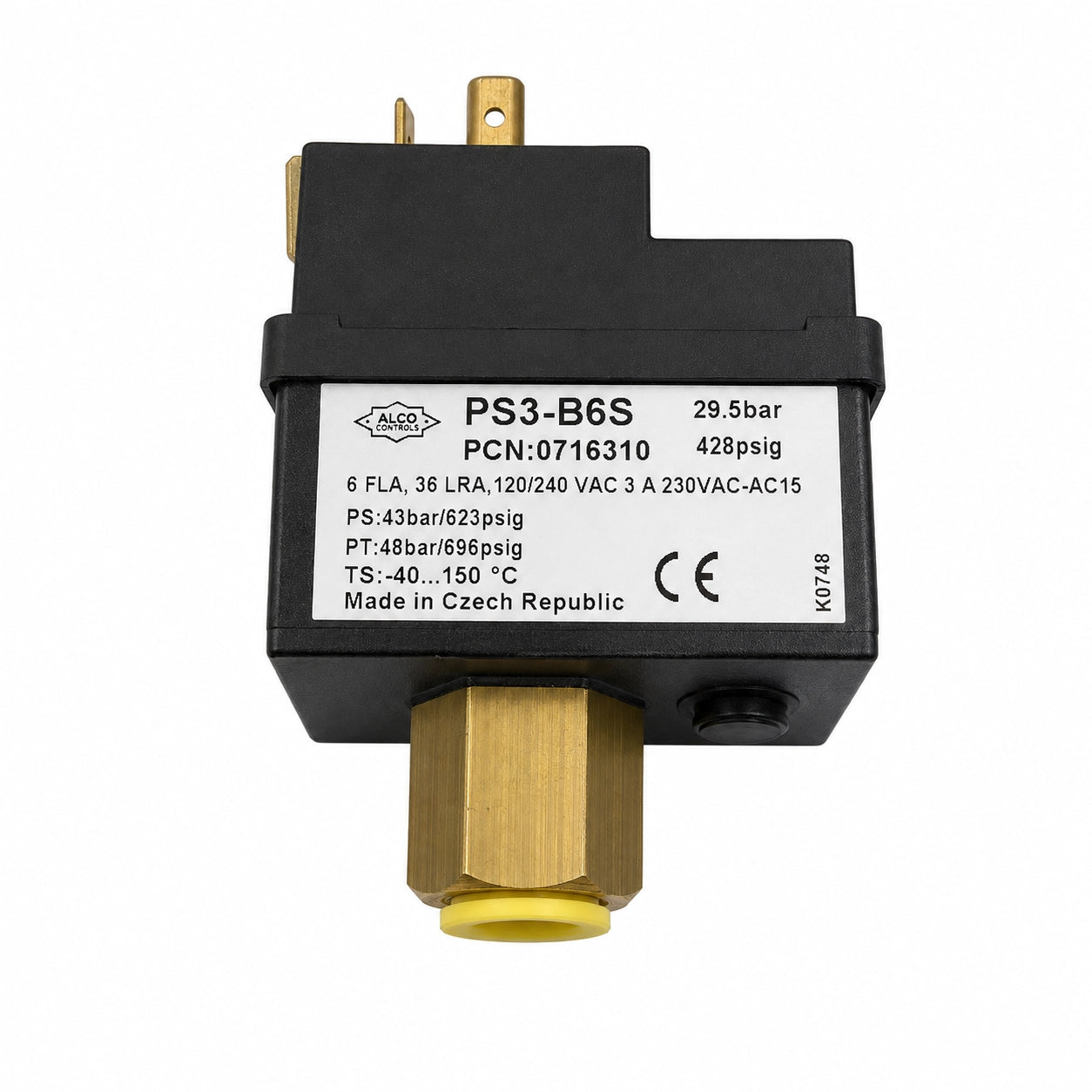

The Alco Controls PS3-B6S, PCN 0716310, is a fixed-setting high pressure cut-out with external manual reset. This model has a 29.5 bar cut-out setting and is identified on the product label with a 43 bar maximum operating pressure.
| Type | PS3-B6S |
| PCN | 0716310 |
| Function | High pressure cut-out |
| Cut-Out Setting | 29.5 bar / 428 psig |
| Reset | External manual reset |
| Maximum Operating Pressure PS | 43 bar / 623 psig |
| Test Pressure PT | 48 bar / 696 psig |
| Temperature Range TS | -40 to +150°C |
| Motor Rating | 6 FLA, 36 LRA at 120/240 VAC |
| Inductive Load | 3 A at 230 VAC, AC-15 |
| Pressure Connection | 7/16"-20 UNF female with Schrader valve opener and snubber |
Typical application: High-pressure protection with direct compressor mounting where a fixed cut-out setting and external manual reset are required.
Apexon Supply provides B2B sourcing, replacement sourcing and technical alignment support for Alco Controls pressure-control components. Buyers should verify the cut-out setting, reset function, electrical ratings and pressure connection against the original equipment requirements.
Submit PS3-B6S or PCN 0716310, the required quantity and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
