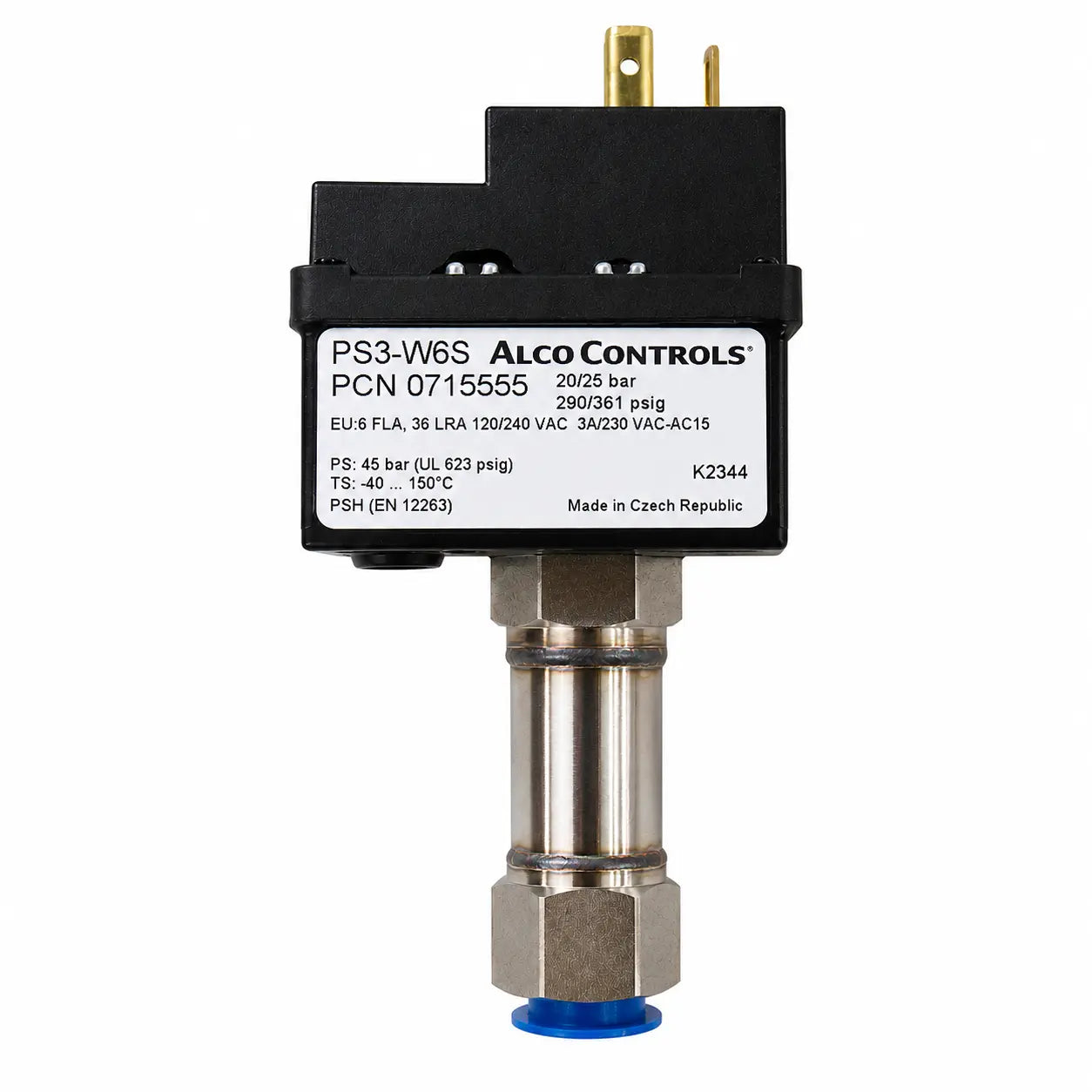

Alco Controls PS3-W6S / 0715555 High Pressure Limiter, 25 bar Cut-Out, Auto Reset
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Alco Controls PS3-W6S, Part No. 0715555, is a fixed-setting pressure limiter for high-pressure protection PSH. This automatic-reset model has a 25.0 bar cut-out, 20.0 bar cut-in and an integrated snubber for direct compressor mounting.
| Type | PS3-W6S |
| Part No. | 0715555 |
| Function | Pressure limiter for high-pressure protection PSH |
| Cut-Out | 25.0 bar |
| Cut-In | 20.0 bar |
| Reset | Automatic |
| Maximum Ambient Temperature | +70°C |
| Maximum Pressure Connection Temperature | +150°C |
| Leakage Test Pressure | 50 bar |
| Pressure Connection | 7/16"-20 UNF female thread with Schrader opener and snubber |
Typical application: High-pressure protection with direct compressor mounting, where the integrated snubber and fixed switch-point settings are required.
Apexon Supply provides B2B sourcing, replacement sourcing and technical alignment support for Alco Controls pressure-control components. Buyers should compare the verified switching pressures, reset function and pressure connection with the original system requirements.
Submit PS3-W6S or Part No. 0715555, the required quantity and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
