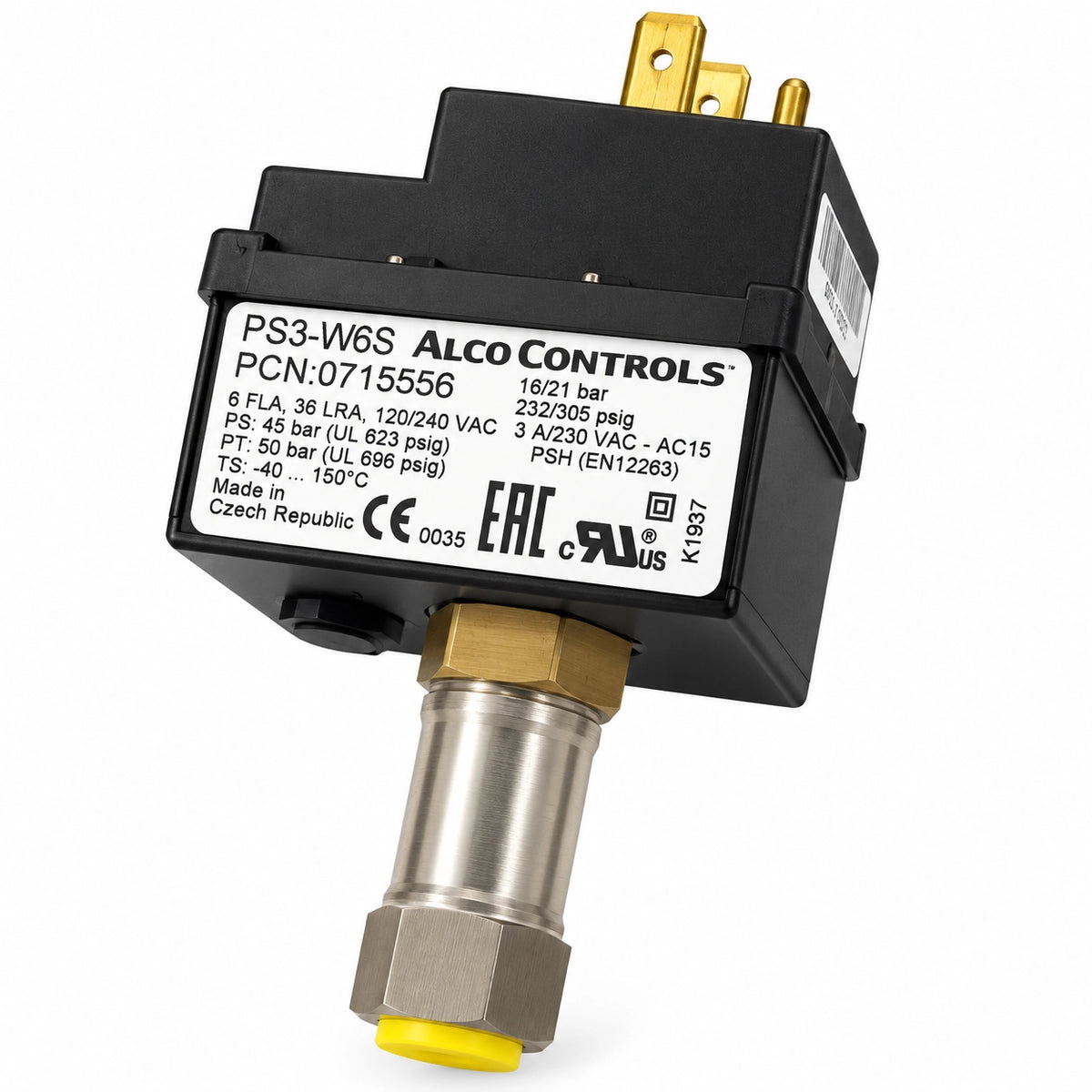

ALCO Controls PS3-W6S / 0715556 High Pressure Switch, 21 bar Cut-Out, 16 bar Cut-In
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ALCO Controls PS3-W6S, PCN 0715556, is an automatic-reset high pressure switch with a 21 bar cut-out and 16 bar cut-in. This PSH pressure control is marked EN 12263 and features a pressure connection with a Schrader opener and pulsation snubber.
| Type | PS3-W6S |
| PCN | 0715556 |
| Switching points | Cut-out: 21 bar (305 psig); cut-in: 16 bar (232 psig) |
| Reset | Automatic |
| Pressure connection | 7/16"-20 UNF female thread with Schrader opener and snubber |
| Maximum allowable pressure (PS) | 45 bar; UL rating: 623 psig |
| Test pressure (PT) | 50 bar; UL rating: 696 psig |
| Temperature limits (TS) | −40 to +150°C |
| Motor-load rating | 6 FLA / 36 LRA at 120/240 VAC |
| AC-15 rating | 3 A at 230 VAC |
| Pressure control classification | PSH, EN 12263 |
Designed for high pressure protection with direct compressor mounting, using a snubber to damp pressure pulsations.
Apexon Supply supports B2B sourcing and replacement identification. Provide the existing unit's nameplate, connection details, and electrical requirements to support specification matching.
Request a quotation for ALCO Controls PS3-W6S, PCN 0715556. Include the required quantity, destination, and documentation requirements.
