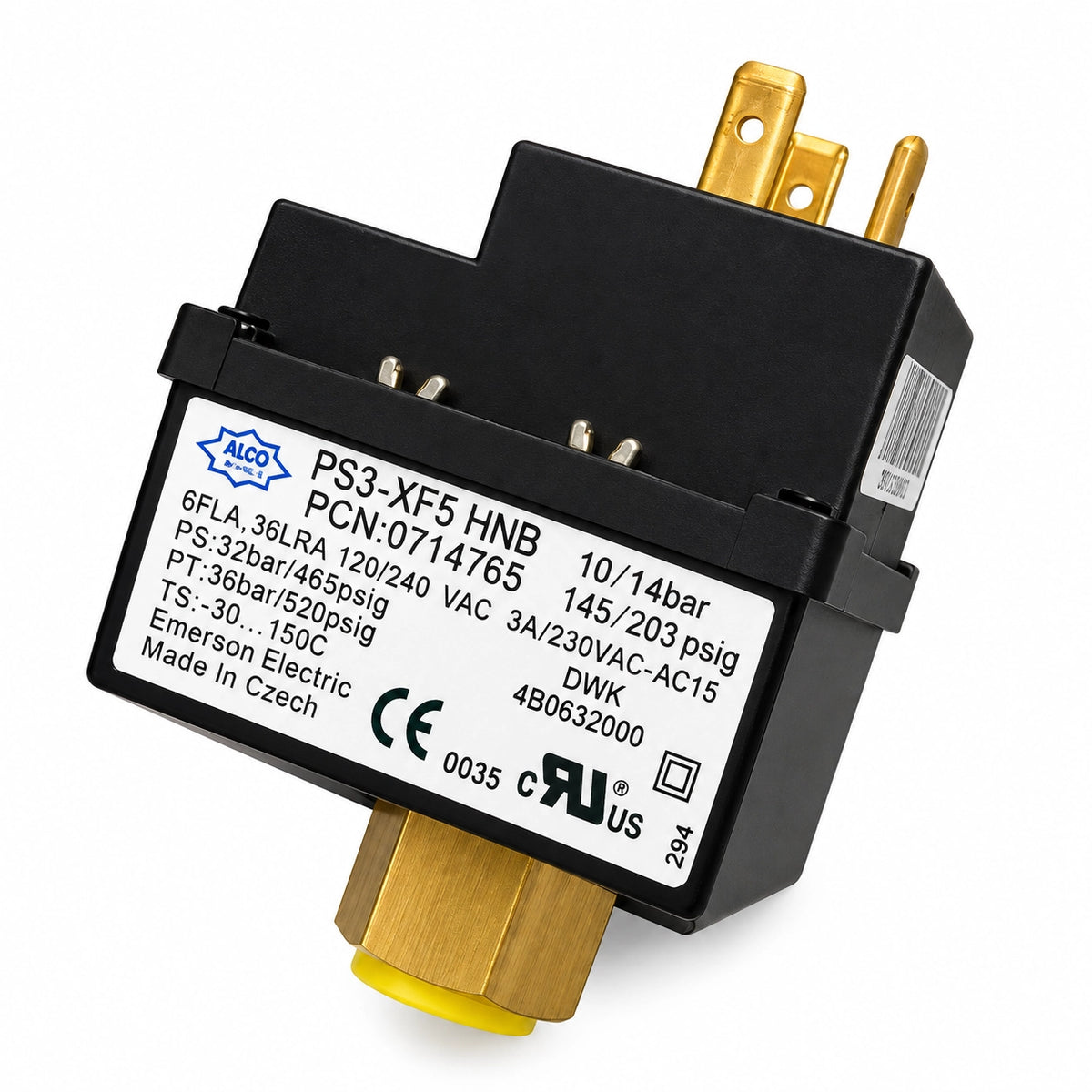

ALCO Controls PS3-XF5 HNB / 0714765 Pressure Switch, 10/14 bar, 3 A at 230 VAC AC-15
Regular price
$490.00 USD
Regular price
Sale price
$490.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ALCO Controls PS3-XF5 HNB, PCN 0714765, is a pressure switch with nameplate switching settings of 10/14 bar (145/203 psig). The unit carries separate motor-load and AC-15 electrical ratings for specification matching.
| Model | PS3-XF5 HNB |
| PCN | 0714765 |
| Switching settings | 10/14 bar (145/203 psig) |
| Maximum allowable pressure (PS) | 32 bar (465 psig) |
| Test pressure (PT) | 36 bar (520 psig) |
| Temperature limits (TS) | −30 to +150°C |
| Motor-load rating | 6 FLA / 36 LRA at 120/240 VAC |
| AC-15 rating | 3 A at 230 VAC |
Apexon Supply supports B2B sourcing and replacement identification. Provide the existing unit's nameplate, pressure connection details, and electrical requirements to support an accurate specification review.
Request a quotation for ALCO Controls PS3-XF5 HNB, PCN 0714765. Include the required quantity, destination, and any documentation requirements.
