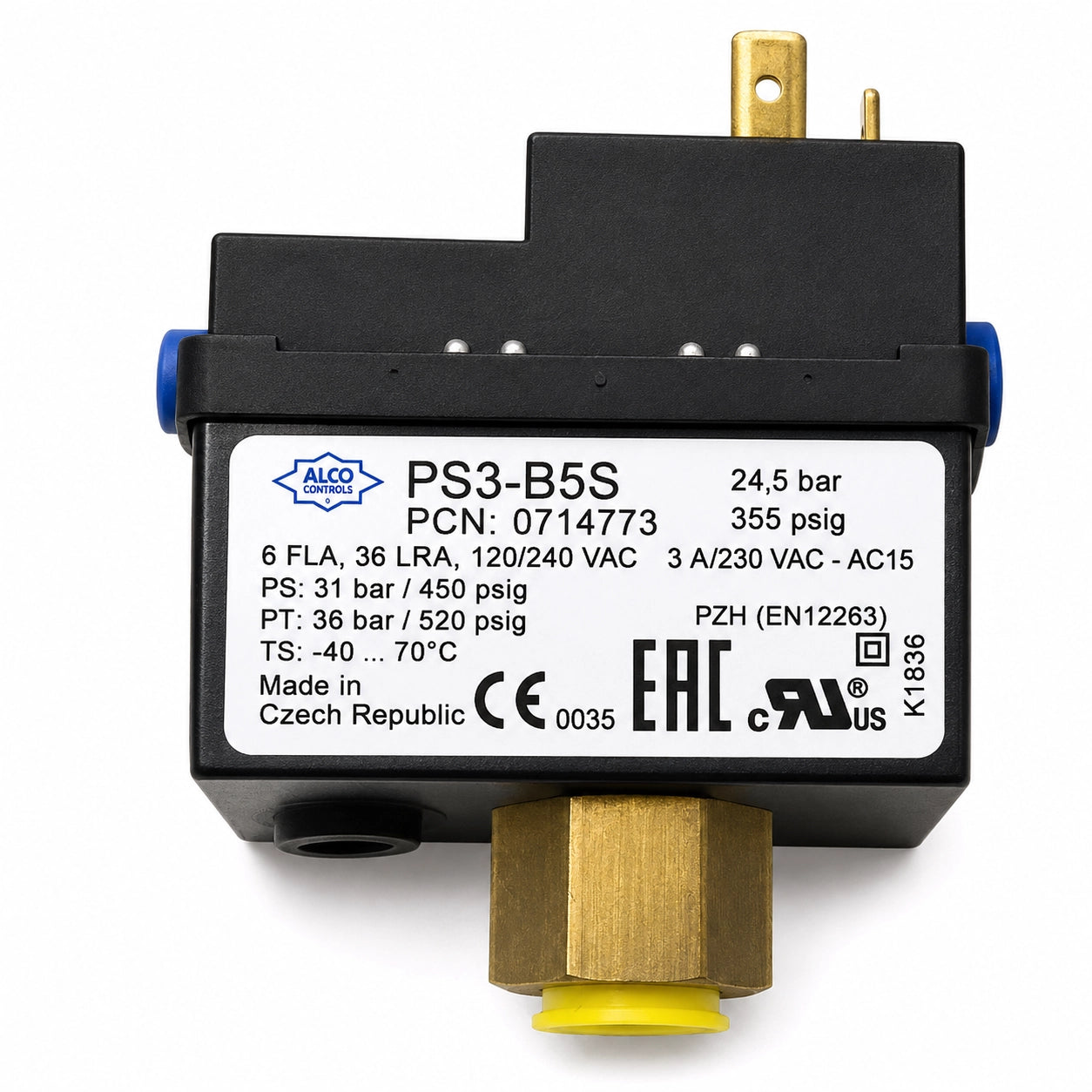

Emerson ALCO PS3-B5S Pressure Control Switch, 24.5 bar High Pressure, 0714773
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Emerson ALCO PS3-B5S (PCN: 0714773) is an industrial PS3 Series pressure control switch designed for high-pressure regulation and safety protection in HVAC and refrigeration systems. It provides reliable pressure switching for system monitoring, compressor protection, and operational stability under elevated pressure conditions.
| Brand | Emerson ALCO Controls |
| Model | PS3-B5S |
| PCN | 0714773 |
| Pressure Setting | 24.5 bar (355 psig) |
| Pressure Limits | PS: 31 bar (450 psig), PT: 36 bar (520 psig) |
| Electrical Rating | 6 FLA / 36 LRA, 120/240 VAC; 3A/230 VAC AC15 |
| Temperature Range | -40 to 70°C |
This pressure control switch is typically used in HVAC and refrigeration systems for high-pressure monitoring and protection, helping safeguard compressors and system components from overpressure conditions.
Apexon Supply provides B2B sourcing support for Emerson ALCO PS3-B5S, supporting procurement teams with replacement identification, technical validation, and RFQ preparation for industrial maintenance requirements.
Submit your required quantity and application details to request a B2B quote and confirm technical compatibility for sourcing support.
