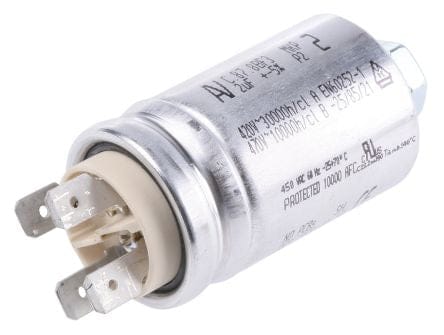

KEMET C.87.8BF3 / C878BF35150AA0J Motor Run Capacitor, 15µF, 470VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
KEMET C.87.8BF3, Part Number C878BF35150AA0J, is a C87.8 series MKP motor run capacitor with 15 µF capacitance, 470 VAC rated voltage, ±5% capacitance tolerance, and maximum dimensions of 40 × 78 mm. This configuration uses double Faston terminals and a cylindrical aluminum case with an M8 mounting stud.
| Type / Marking | C.87.8BF3 |
| Part Number | C878BF35150AA0J |
| Series | C87.8 |
| Capacitor Type | MKP Motor Run Capacitor |
| Capacitance | 15 µF |
| Capacitance Tolerance | ±5% |
| Rated Voltage | 470 VAC |
| Rated Frequency | 50–60 Hz |
| Operating Class at 470 VAC | Class B, 10,000 hours |
| Operating Class at 420 VAC | Class A, 30,000 hours |
| Safety Class | S2 |
| Temperature Range | -25°C to +85°C |
| Maximum Dimensions | 40 mm Diameter × 78 mm Height |
| Termination | Double Faston, 6.3 × 0.8 mm |
| Mounting Stud | M8 × 10 mm |
| Dielectric | Polypropylene |
The C87 series is specified for motor-run applications including single-phase motors, low-power electric motors, and compressors.
For B2B sourcing, replacement, maintenance, or equipment repair requirements, verify both C.87.8BF3 and Part Number C878BF35150AA0J, together with the 15 µF capacitance, 470 VAC rating, double-Faston termination, and 40 × 78 mm maximum dimensions.
For an RFQ, provide the required quantity, destination country, and either C.87.8BF3 or Part Number C878BF35150AA0J. Most qualified RFQs receive a response or quote within 12 hours.
