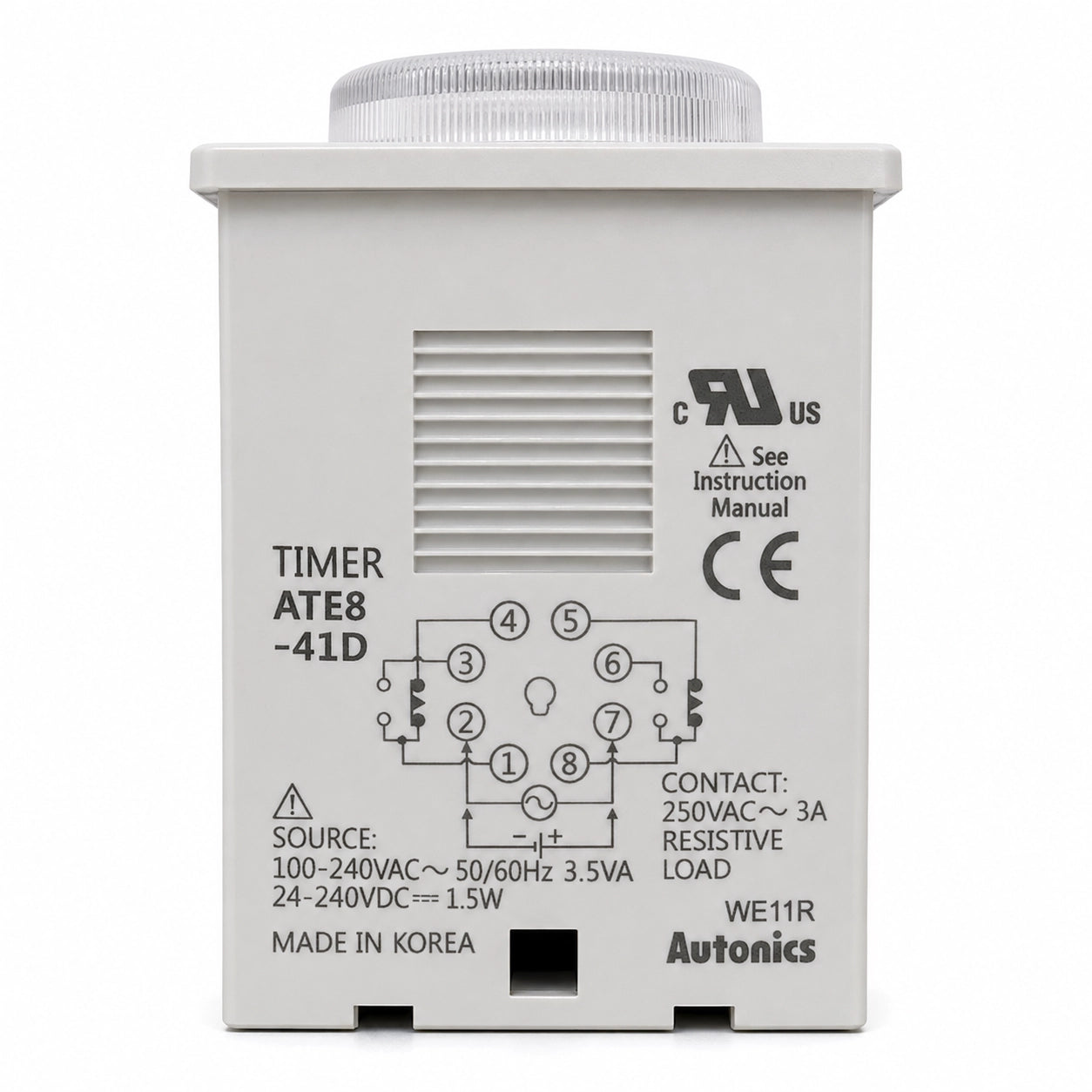

Autonics ATE8-41D / ATE8-43D / ATE8-46D Power ON Delay Analog Timer, DPDT, 100-240VAC
Regular price
$35.00 USD
Regular price
Sale price
$35.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Autonics ATE8-41D, ATE8-43D and ATE8-46D are ATE8 Series W48 × H48 mm Power ON Delay analog timers with 8-pin plug connections and time limit DPDT (2c) relay output. All three models support 100-240VAC 50/60Hz or 24-240VDC power input, while their selectable timing ranges differ by model.
| ATE8-41D | Max. time ranges: 1 sec, 10 sec, 1 min, 10 min, 1 hour |
| ATE8-43D | Max. time ranges: 3 sec, 30 sec, 3 min, 30 min, 3 hours |
| ATE8-46D | Max. time ranges: 6 sec, 60 sec, 6 min, 60 min, 6 hours |
| Function | Power ON Delay |
| Time Operation | Power ON Start |
| Power Supply | 100-240VAC 50/60Hz, 24-240VDC |
| Contact Type | Time limit DPDT (2c) |
| Contact Capacity | 250VAC 3A, 30VDC 3A resistive load |
| Return Time | ≤ 200 ms |
| Protection Rating | IP40, front part |
| Ambient Temperature | -10 to 55°C |
| Mechanical Relay Life | ≥ 5,000,000 operations |
Apexon Supply provides B2B sourcing and replacement support for Autonics ATE8 Series timers, helping procurement teams compare exact model identifiers, timing ranges and verified electrical specifications.
Submit ATE8-41D, ATE8-43D or ATE8-46D with the required quantity for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
