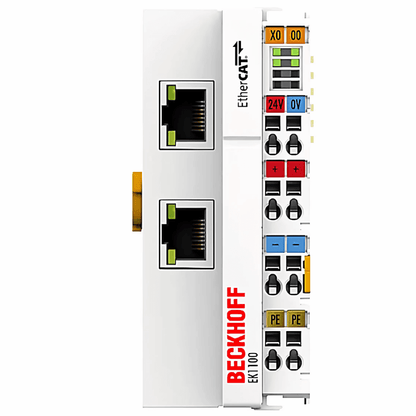

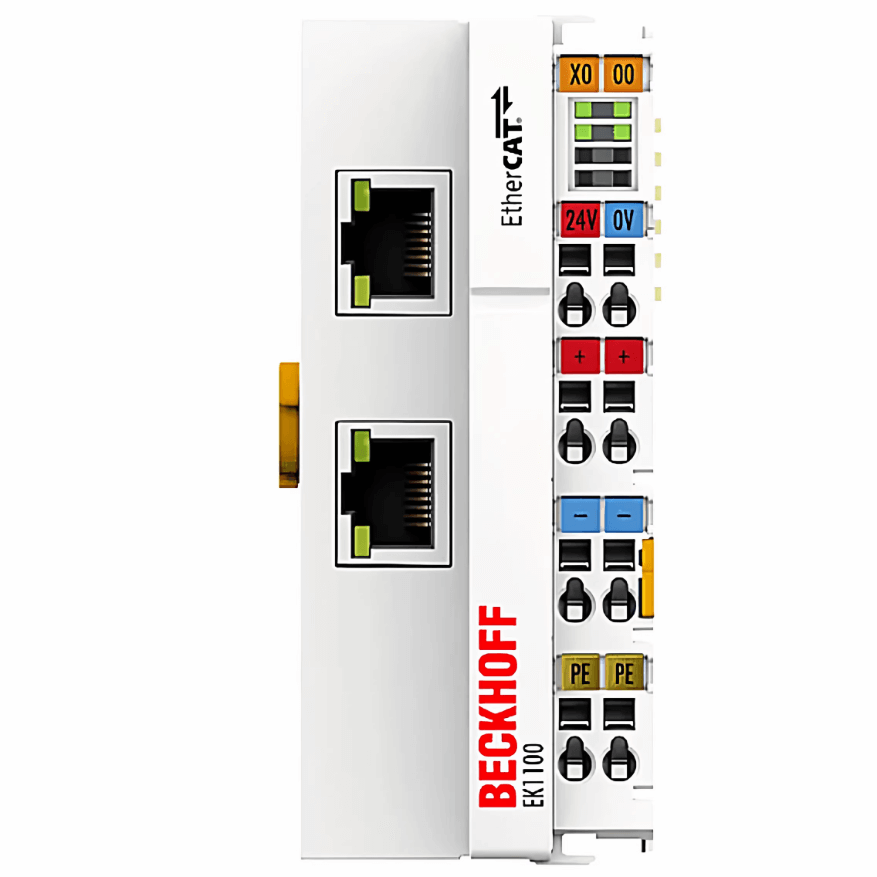

Beckhoff EK1100 EtherCAT Coupler EK1100, 24V DC Supply, 2x RJ45 100BASE-TX, 44×100×68 mm
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EK1100 EtherCAT Coupler links the EtherCAT protocol at fieldbus level (100BASE‑TX) to EtherCAT Terminals (ELxxxx). It converts Ethernet telegrams to E‑bus signals and automatically detects connected EtherCAT Terminals in the process image. The coupler provides 24 V DC system and field supply and can deliver up to 5 V / 2 A to the E‑bus. It features two RJ45 ports for line or optional segment extension.
Key Features
- Couples EtherCAT Terminals (ELxxxx) to 100BASE‑TX EtherCAT networks
- 2 x RJ45 sockets; station distances up to 100 m (100BASE‑TX)
- Supports up to 65,534 EtherCAT Terminals in the overall system
- E‑bus current supply up to 2000 mA; power contacts up to 24 V DC / 10 A
- Electrical isolation 500 V (power contact/supply/Ethernet)
- Compact IP20 housing for 35 mm DIN rail mounting
- Approvals: CE, CCC, UL, ATEX, IECEx, DNV, cFMus
Applications
- Integration of EtherCAT Terminals into EtherCAT networks (line or star topologies via EtherCAT junction/extension)
- Installation anywhere in the Ethernet signal transfer section (100BASE‑TX) except directly at a switch
Specifications
| Brand | Beckhoff |
| Series | EtherCAT Coupler |
| Specific MPN | EK1100 |
| Task | Coupling EtherCAT Terminals (ELxxxx) to 100BASE‑TX EtherCAT networks |
| Protocol | EtherCAT |
| Bus Interface | 2 × RJ45 (100BASE‑TX) |
| Data Transfer Rate | 100 Mbit/s; delay approx. 1 μs |
| Distance Between Stations | Up to 100 m (100BASE‑TX) |
| Max. EtherCAT Terminals | Up to 65,534 |
| Power Supply | 24 V DC (-15% / +20%) |
| Current Consumption (US) | 70 mA + (∑ E‑bus current / 4) |
| E‑bus Current Supply | 2000 mA (5 V) |
| Power Contacts | Max. 24 V DC / max. 10 A |
| Electrical Isolation | 500 V (power contact / supply voltage / Ethernet) |
| Operating Temperature | -25…+60 °C |
| Protection / Mounting | IP20; 35 mm DIN rail (EN 60715); compact terminal housing with LEDs |
| Approvals / Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus; Ex: ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| Dimensions (W × H × D) | 44 mm × 100 mm × 68 mm |
