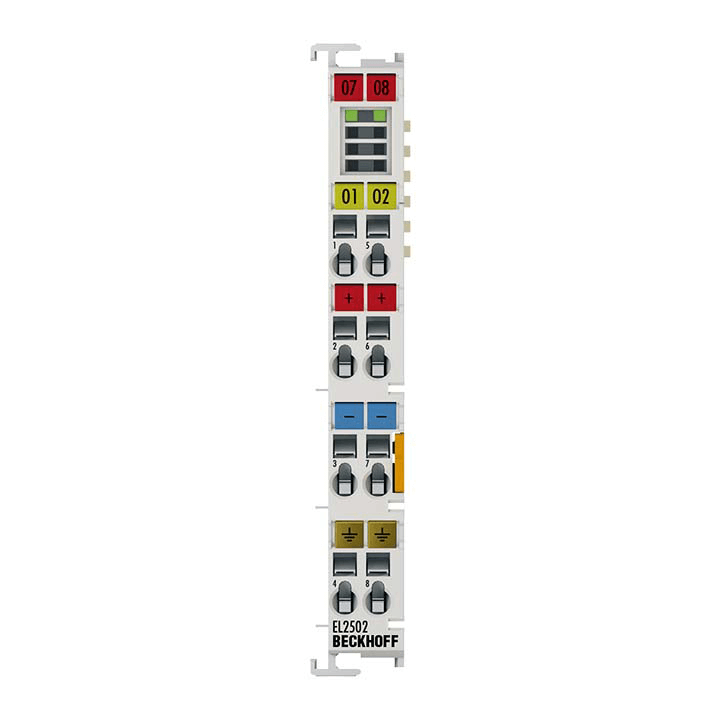

Beckhoff EL2502 EtherCAT Terminal PWM Output, 24V DC, 0.5A/Ch, 1 Hz–125 kHz, 2 Channels, 12×100×68 mm
Regular price
$265.00 USD
Regular price
Sale price
$265.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL2502 is a 2-channel PWM output EtherCAT Terminal that modulates the pulse width of a binary signal and outputs it electrically isolated from the E-bus. Each channel’s frequency can be set independently, and the duty cycle is written as a 16‑bit value from the controller. The push‑pull output stage is short‑circuit protected and suitable for ohmic, inductive and lamp loads.
Key Features
- Two PWM outputs with push‑pull stages
- Independent base frequency per channel
- 0.5 A max per channel, short‑circuit proof; reverse‑polarity protection
- Duty cycle 0…100% (TON > 750 ns, TOFF > 500 ns)
- Electrical isolation: 500 V (E‑bus/field)
- Compact 12 mm DIN‑rail terminal with LED status indication
Specifications
| Specific MPN | EL2502 |
| Outputs / Type | 2 × PWM, push‑pull |
| Nominal Voltage | 24 V DC (−15% / +20%) |
| Max Output Current | 0.5 A per channel (short‑circuit proof; typ. short‑circuit current < 1.5 A) |
| Base Frequency | 1 Hz…125 kHz (per channel; default 250 Hz) |
| Duty Cycle | 0…100% (TON > 750 ns, TOFF > 500 ns); 9…15‑bit resolution |
| Load Types | Ohmic, inductive, lamp load |
| Electrical Isolation | 500 V (E‑bus / field potential) |
| Current Consumption | E‑bus typ. 140 mA; power contacts typ. 30 mA |
| Configuration | Via TwinCAT System Manager; process image 2 × 16‑bit PWM |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
