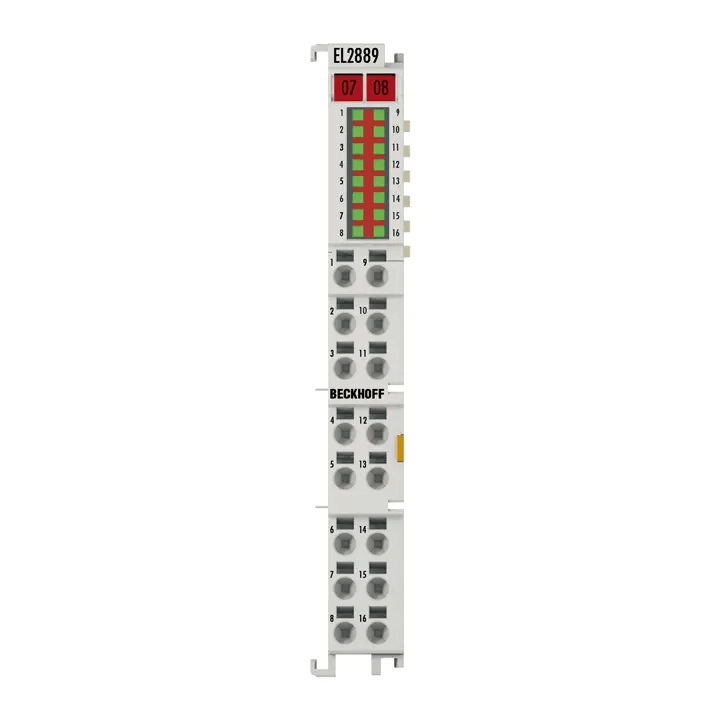

Beckhoff EL2889 EtherCAT Terminal, 16-Channel Digital Output (Ground Switching), 24V DC, 0.5A/Channel, 12×100×68 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL2889 is a 16-channel ground-switching digital output EtherCAT Terminal for 24 V DC actuators. It provides galvanic isolation between the E-bus and field, LED status per channel, and high channel density in a 12 mm housing. Outputs are referenced to the common 0 V power contact and are overload/short-circuit proof with reverse-polarity protection.
Key Features
- 16 digital outputs, ground-switching reference (outputs supplied via 0 V power contact)
- 0.5 A max per channel; overload and short-circuit proof; reverse polarity protection
- Supports ohmic, inductive and lamp loads
- Fast switching: typ. TON 50 μs, TOFF 200 μs
- High-density 12 mm housing with per-channel LED indication
- Tool-free direct plug-in wiring for solid conductors
Applications
- Driving relays, solenoids, and lamps in EtherCAT systems using ground switching
- Space-constrained control panels requiring high output density
Specifications
| Specific MPN | EL2889 |
| Series / Type | EtherCAT Terminal, ground-switching digital output |
| Connection Technology | 1-wire |
| Number of Outputs | 16 |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Max. Output Current | 0.5 A per channel (short-circuit proof) |
| Load Types | Ohmic, inductive, lamp load |
| Switching Times | Typical TON 50 μs; TOFF 200 μs |
| Protections | Reverse polarity; overload/short-circuit proof; typ. short-circuit current < 7 A; breaking energy < 100 mJ/channel |
| Current Consumption (E‑bus) | typ. 140 mA |
| Current Consump. (Power Contacts) | typ. 30 mA + load |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
