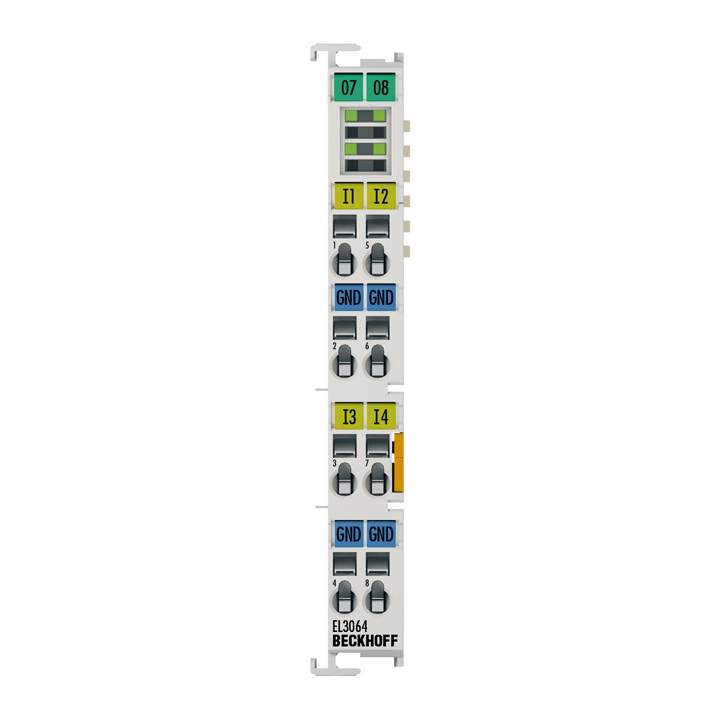

Beckhoff EL3064 EtherCAT Terminal 4-Channel Analog Input, 0–10 V, 12-bit, 12×100×68 mm
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL3064 is a 4-channel analog input EtherCAT Terminal for 0…10 V signals. Each single-ended input is digitized with 12-bit resolution and transmitted electrically isolated to the controller. The four inputs use 2‑wire connection with a common internal ground. Status LEDs indicate each channel state.
Key Features
- Four single-ended analog inputs for 0…10 V
- 12-bit resolution; default 0.625 ms conversion time (configurable, multiplexed)
- Input filter limit frequency 1 kHz; input impedance >130 kΩ
- 500 V isolation between E‑bus and signal voltage
- Compact 12 mm IP20 terminal with per-channel LED indication
- FIR/IIR filters and limit value monitoring can be enabled
Applications
- Acquisition of 0–10 V process and sensor signals in EtherCAT systems
- Space-constrained panels requiring compact multi-channel analog inputs
Specifications
| Brand | Beckhoff |
| Series / Type | EtherCAT Terminal, analog input |
| Specific MPN | EL3064 |
| Number of Inputs | 4 (single-ended, 2-wire, common internal ground) |
| Signal Voltage | 0…10 V |
| Resolution | 12 bit (16-bit presentation incl. sign) |
| Conversion Time (default) | 0.625 ms (configurable, multiplexed) |
| Input Filter Limit Frequency | 1 kHz |
| Input Impedance | > 130 kΩ |
| Dielectric Strength | max. 30 V |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Current Consumption (E-bus) | typ. 130 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
