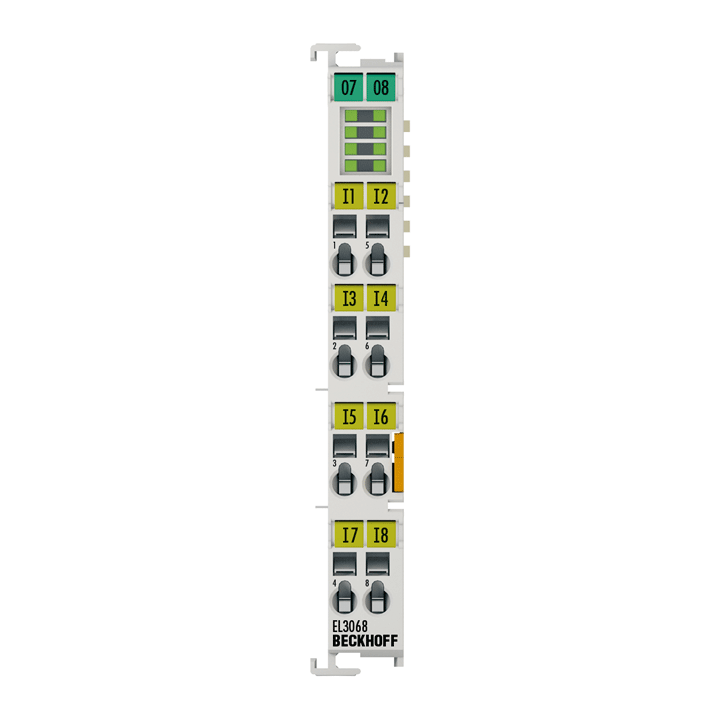

Beckhoff EL3068 EtherCAT Terminal Analog Input, 0–10 V, 12-bit, 8 Channels, 12×100×68 mm
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL3068 is an 8-channel analog input EtherCAT Terminal that measures 0–10 V signals and transmits them to the controller with 12-bit resolution. Inputs are single-ended with the 0 V power contact used as the reference ground. The terminal provides galvanic isolation between E-bus and signal voltage, with status LEDs per channel. Its compact 12 mm width saves space in control cabinets.
Key Features
- Eight single-ended analog inputs for 0–10 V
- 12-bit resolution; default conversion time 1.25 ms (configurable, multiplexed)
- Input filter limit frequency 1 kHz
- High input impedance (>130 kΩ); dielectric strength max. 30 V
- 500 V isolation between E-bus and signal voltage
- Compact 12 mm IP20 terminal; per-channel LED indication
Applications
- Acquisition of 0–10 V process and sensor signals in EtherCAT systems
- Space-constrained panels needing high channel density analog inputs
Specifications
| Specific MPN | EL3068 |
| Series / Type | EtherCAT Terminal, analog input |
| Number of Inputs | 8 (single-ended) |
| Signal Voltage | 0…10 V |
| Resolution | 12 bit (16-bit presentation incl. sign) |
| Conversion Time (default) | 1.25 ms (configurable, multiplexed) |
| Input Filter Limit Frequency | 1 kHz |
| Input Impedance | > 130 kΩ |
| Dielectric Strength | max. 30 V |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Current Consumption (E-bus) | typ. 130 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
