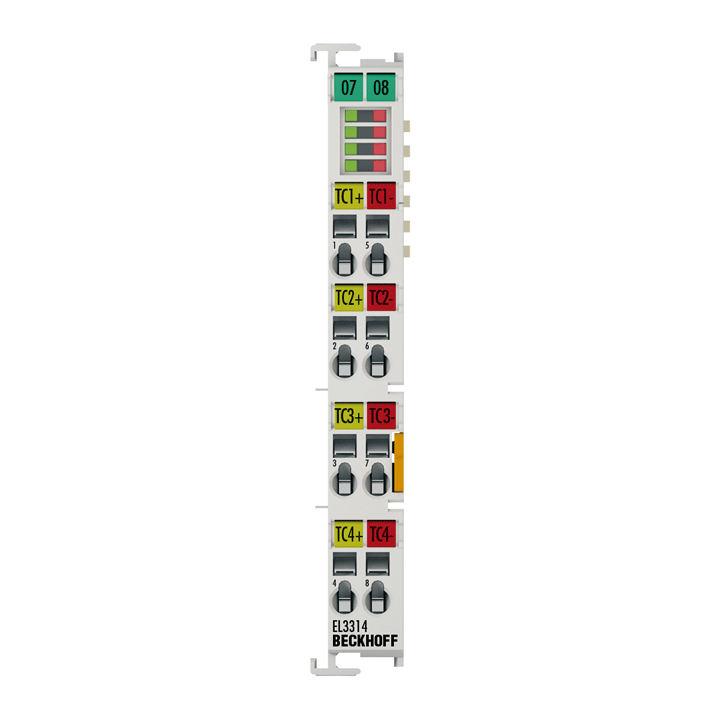

Beckhoff EL3314 EtherCAT Terminal 4-Channel Thermocouple Input, 16-bit, 2‑Wire, 12×100×68 mm
Regular price
$145.00 USD
Regular price
Sale price
$145.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL3314 is a 4‑channel thermocouple analog input EtherCAT Terminal. It supports direct 2‑wire TC connection with internal cold‑junction compensation and per‑channel linearization over the full temperature range. Wire‑break is indicated by LEDs. The terminal can also be used for low‑level mV measurements.
Key Features
- 4 thermocouple inputs in a compact 12 mm housing
- Thermocouple types: B, C, E, J, K, L, N, R, S, T, U (default: K)
- 16‑bit resolution with selectable representation (0.1/0.01 °C or 1/2/4 μV per digit)
- Internal cold‑junction compensation; external CJ supported
- Per‑channel wire‑break detection; adjustable firmware filter
- Also supports ±30/±60/±75 mV voltage measurement
Applications
- Multi‑point temperature acquisition with thermocouples
- Precision low‑level mV measurement in EtherCAT systems
Specifications
| Specific MPN | EL3314 |
| Function | 4‑channel analog input for thermocouples / mV measurement |
| Connection Method | 2‑wire |
| Thermocouple Types | B, C, E, J, K, L, N, R, S, T, U (default K) |
| Resolution | 16 bit; representation 0.1/0.01 °C or 1/2/4 µV per digit |
| Conversion Time | Approx. 2.5 s to 10 ms (config./filter dependent); default ~250 ms |
| Input Filter Limit Frequency | Typ. 1 kHz |
| Voltage Measurement Ranges | ±30 / ±60 / ±75 mV |
| Measurement Uncertainty (TC) | At 23°C with internal CJ: B ±8.5°C; C ±6.2°C; E ±2.5°C; J ±2.7°C; K ±3.0°C; L ±2.3°C; N ±3.0°C; R ±6.7°C; S ±7.1°C; T ±2.9°C; U ±2.5°C |
| Electrical Isolation | 500 V (E‑bus / signal voltage) |
| Current Consumption (E‑bus) | Typ. 200 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx, cFMus |
