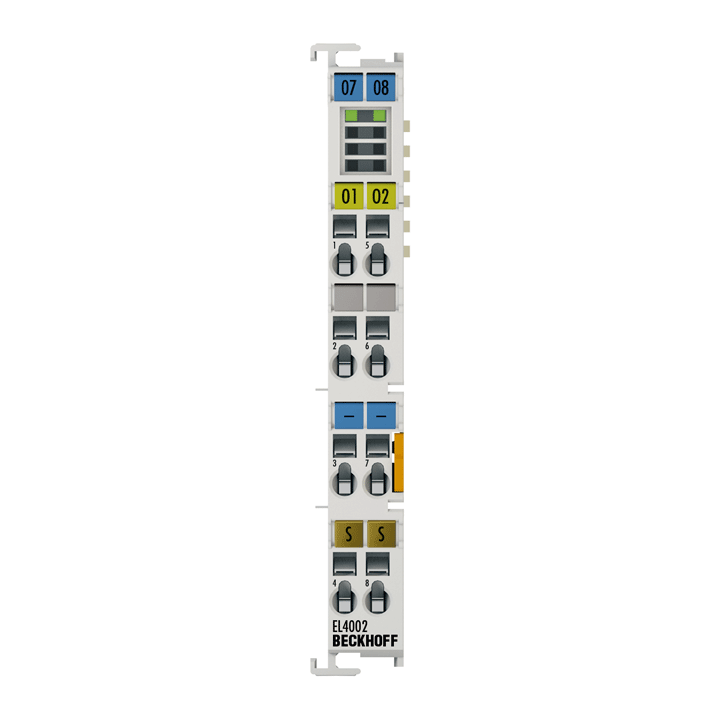

Beckhoff EL4002 EtherCAT Terminal 2-Channel Analog Output, 0–10 V, 12-bit, 12×100×68 mm
Regular price
$145.00 USD
Regular price
Sale price
$145.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL4002 is a two-channel analog output EtherCAT Terminal that generates 0…10 V signals with 12‑bit resolution. Outputs share a common ground, are powered from the 24 V power contacts, and are galvanically isolated from the E‑bus. Distributed Clocks are supported for precise synchronization, and per‑channel LEDs indicate status.
Key Features
- 2 analog voltage outputs, 0…10 V (short-circuit proof)
- 12‑bit resolution; fast ~150 μs conversion time
- Distributed Clocks support (precision ≪ 1 μs)
- Load > 5 kΩ
- 500 V isolation between E‑bus and signal voltage
- Optional watchdog with user-specific output value and ramp; user synchronization
Applications
- 0…10 V control of actuators and analog devices
- Synchronized analog output generation in EtherCAT systems
Specifications
| Specific MPN | EL4002 |
| Number of Outputs | 2 |
| Signal Range | 0…10 V |
| Resolution | 12 bit |
| Conversion Time | ~150 μs |
| Distributed Clocks | Yes (precision ≪ 1 μs) |
| Load Capability | > 5 kΩ (short-circuit proof) |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Power / Consumption | 24 V DC via power contacts; typ. 40 mA (power contacts), typ. 140 mA (E‑bus) |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
