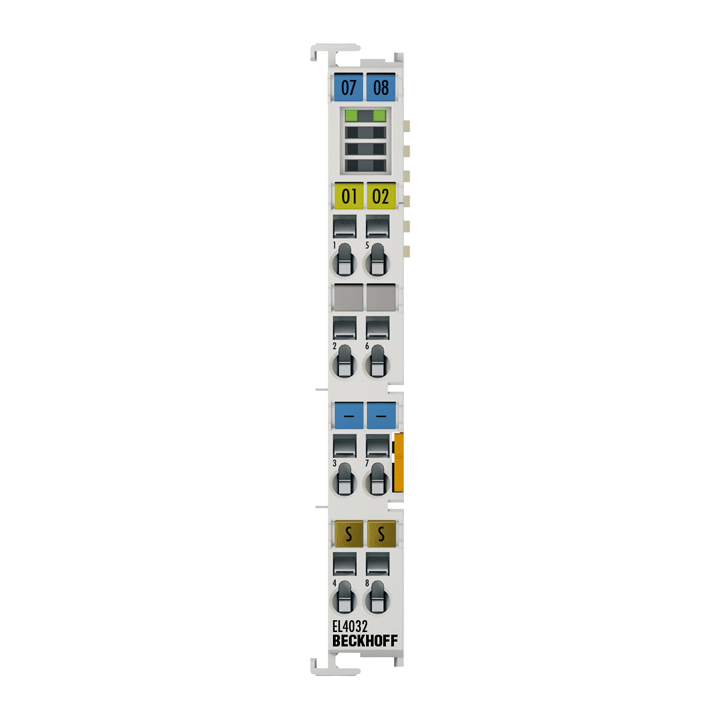

Beckhoff EL4032 EtherCAT Terminal 2-Channel Analog Output, ±10 V, 12-bit, 12×100×68 mm
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL4032 is a two-channel analog output EtherCAT Terminal that generates ±10 V signals with 12‑bit resolution. Outputs share a common ground, are powered via the 24 V power contacts, and are galvanically isolated from the E‑bus. Distributed Clocks are supported for precise synchronization, and LEDs indicate the status of each channel.
Key Features
- 2 analog voltage outputs, ±10 V (short-circuit proof)
- 12‑bit resolution with ~150 μs conversion time
- Distributed Clocks support (precision ≪ 1 μs)
- Load capability > 5 kΩ
- 500 V isolation between E‑bus and signal voltage
- Optional watchdog (user-specific output value with ramp); user synchronization
Applications
- ±10 V control of drives, actuators, and analog devices
- Synchronized analog voltage generation in EtherCAT systems
Specifications
| Specific MPN | EL4032 |
| Number of Outputs | 2 |
| Signal Voltage | -10…+10 V |
| Resolution | 12 bit |
| Conversion Time | ~150 μs |
| Distributed Clocks | Yes (precision << 1 μs) |
| Load Capability | > 5 kΩ (short-circuit proof) |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Power / Consumption | 24 V DC via power contacts (typ. 40 mA); E-bus typ. 140 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
