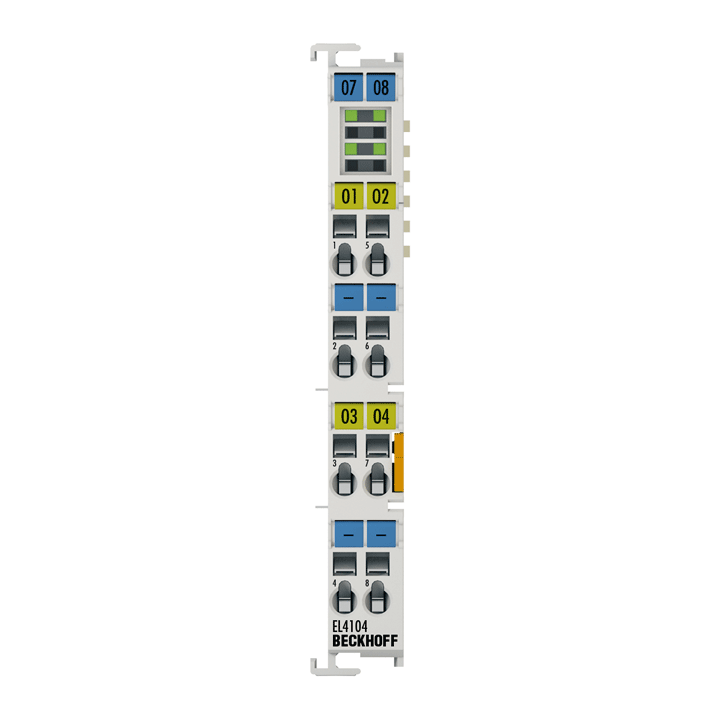

Beckhoff EL4104 EtherCAT Terminal 4-Channel Analog Output, 0–10 V, 16-bit, 12×100×68 mm
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL4104 is a 4‑channel analog output EtherCAT Terminal that generates 0…10 V signals with 16‑bit resolution. Outputs share a common ground, are electrically isolated from the E‑bus, and support Distributed Clocks for precise synchronization. Status LEDs indicate each channel state.
Key Features
- 4 voltage outputs, 0…10 V (short-circuit proof)
- High resolution: 16‑bit; output rate up to 4 ksps
- Distributed Clocks support (precision << 1 μs)
- Load > 5 kΩ
- 500 V isolation between E‑bus and signal voltage
- Compact 12 mm IP20 terminal; per‑channel status LEDs
Applications
- Precise 0…10 V control of actuators and drives
- Synchronized analog voltage generation in EtherCAT systems
Specifications
| Specific MPN | EL4104 |
| Series / Type | EtherCAT Terminal, analog output |
| Number of Outputs | 4 |
| Signal Range | 0…10 V |
| Resolution | 16 bit (incl. sign) |
| Output Rate | max. 4 ksps |
| Distributed Clocks | Yes; precision << 1 μs |
| Load Capability | > 5 kΩ (short-circuit proof) |
| Electrical Isolation | 500 V (E‑bus / signal voltage) |
| Power / Consumption | From E‑bus; E‑bus current typ. 190 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
