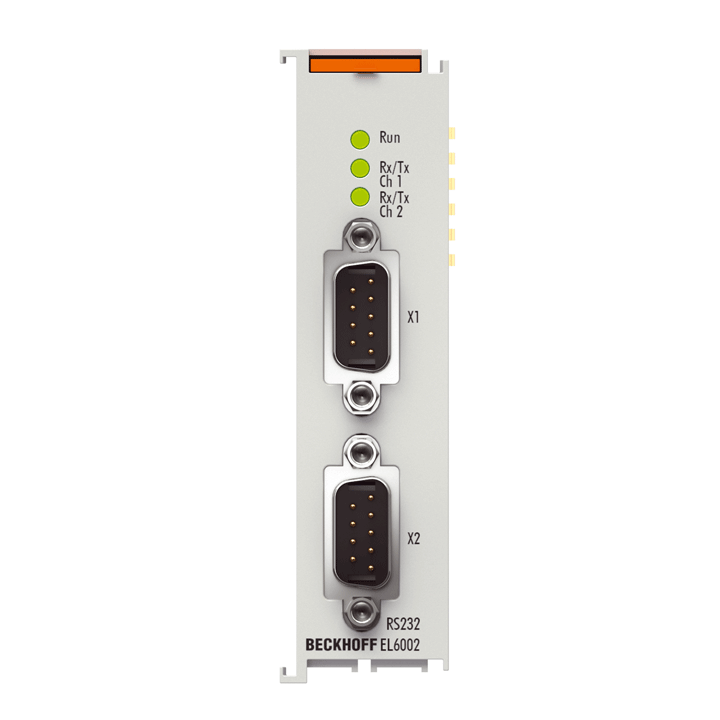

Beckhoff EL6002 EtherCAT Terminal 2-Channel RS232 Serial Interface, 300–115200 Baud, D-sub 9‑pin, 24×100×52 mm
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL6002 is a 2‑channel RS232 serial communication EtherCAT Terminal. Each port operates independently in full‑duplex mode from 300 to 115,200 baud and is galvanically isolated from the E‑bus for high interference immunity. With the TwinCAT Virtual Serial COM Driver, the EL6002 can be exposed as standard Windows COM ports.
Key Features
- Two independent RS232 interfaces (full duplex)
- 300…115,200 baud, default 9600 baud, 8 data bits, no parity, 1 stop bit
- D‑sub 9‑pin connectors; cable length up to 15 m
- Large buffers: 864‑byte receive, 128‑byte transmit
- 500 V electrical isolation between E‑bus and signal voltage
- Compact 24 mm‑wide DIN‑rail terminal with status LEDs
Applications
- Connecting two RS232 devices (instruments, HMIs, modems, sensors) to EtherCAT systems
- PC communication via TwinCAT Virtual Serial COM Driver
Specifications
| Specific MPN | EL6002 |
| Interfaces | 2 × RS232 (full duplex) |
| Data Rates | 300…115,200 baud (default 9600, 8 data bits, no parity, 1 stop bit) |
| Connector | D‑sub, 9‑pin (per channel) |
| Max. Cable Length | 15 m |
| Buffers | 864 bytes RX, 128 bytes TX |
| Electrical Isolation | 500 V (E‑bus / signal voltage) |
| Power / E‑bus Current | Via E‑bus; typ. 170 mA |
| Dimensions (W × H × D) | 24 mm × 100 mm × 52 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx |
