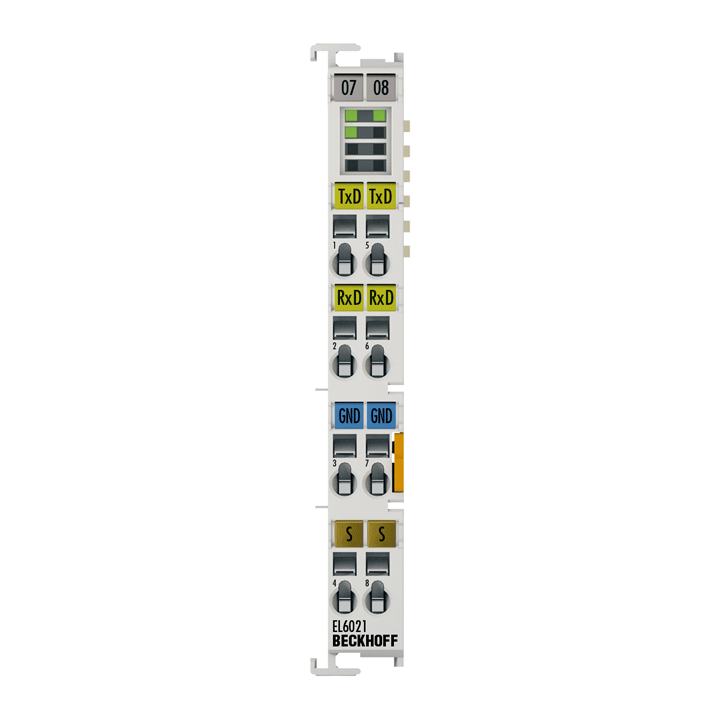

Beckhoff EL6021 EtherCAT Terminal Serial Interface RS422/RS485, 2400–115200 Baud, 1 Channel, 12×100×68 mm
Regular price
$280.00 USD
Regular price
Sale price
$280.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL6021 is a 1-channel serial communication EtherCAT Terminal for RS422/RS485 devices. It operates independently of the higher-level bus in full- or half-duplex mode up to 115.2 kbaud, using differential signaling for high noise immunity. The interface is galvanically isolated from the E-bus. With the TwinCAT Virtual Serial COM Driver, the EL6021 can be used as a standard Windows COM port.
Key Features
- RS422/RS485 serial interface (differential), full/half duplex
- Data rates: 2400…115,200 baud (default 9600, 8 data bits, no parity, 1 stop bit)
- Approx. 1000 m cable length with twisted pair; 120 Ω line impedance
- Large buffers: 864-byte RX and 128-byte TX
- 500 V electrical isolation between E-bus and signal voltage
- Compact 12 mm IP20 terminal for 35 mm DIN rail
Applications
- Connecting RS422/RS485 sensors, actuators, and serial peripherals to EtherCAT systems
- PC communication via TwinCAT Virtual Serial COM Driver
Specifications
| Specific MPN | EL6021 |
| Interface | RS422/RS485 (TxD/RxD), full or half duplex, differential signaling |
| Data Rates | 2400…115,200 baud (default 9600, 8 data bits, no parity, 1 stop bit) |
| Line Impedance / Cable Length | 120 Ω; approx. 1000 m (twisted pair) |
| Buffers | 864 bytes receive; 128 bytes transmit |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Power / E-bus Current | Via E-bus; typ. 170 mA |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals / Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
