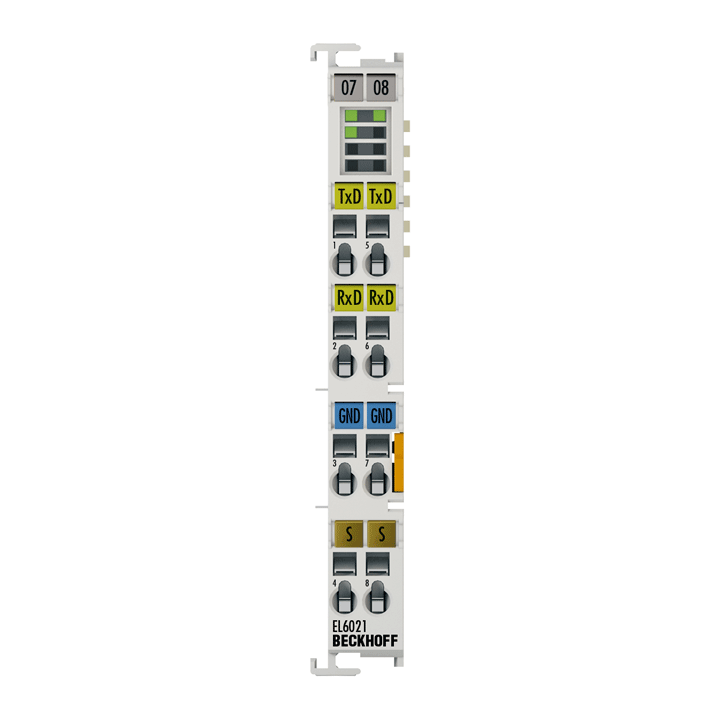

Beckhoff EL6021 EtherCAT Terminal Serial Interface, RS422/RS485 1-Channel, 2400–115200 Baud, 12×100×68 mm
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL6021 is a 1‑channel serial communication EtherCAT Terminal for RS422/RS485 devices. It operates independently of the higher‑level bus in full‑ or half‑duplex mode up to 115.2 kbaud and provides galvanic isolation between E‑bus and signal lines. With the TwinCAT Virtual Serial COM Driver, the EL6021 can be used as a standard Windows COM interface.
Key Features
- RS422/RS485 serial interface (differential signaling)
- Data rates 2400…115,200 baud (default 9600, 8N1)
- Full- or half‑duplex operation; line impedance 120 Ω
- Approx. 1000 m cable length with twisted pair (application dependent)
- Receive/transmit buffers: 864 bytes RX, 128 bytes TX
- 500 V electrical isolation (E‑bus/signal voltage)
Applications
- Connecting RS422/RS485 sensors, drives, and serial peripherals to EtherCAT systems
- PC communication via TwinCAT Virtual Serial COM Driver
Specifications
| Specific MPN | EL6021 |
| Interface | RS422/RS485 (TxD/RxD, full/half duplex) |
| Data Rates | 2400…115,200 baud (default 9600, 8 data bits, no parity, 1 stop bit) |
| Signaling / Impedance | Differential signal, 120 Ω line impedance |
| Max Cable Length | Approx. 1000 m (twisted pair) |
| Buffers | 864 bytes receive, 128 bytes transmit |
| Electrical Isolation | 500 V (E‑bus / signal voltage) |
| E‑bus Current | typ. 170 mA |
| Configuration | No address setting; configuration via PLC |
| Dimensions | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
