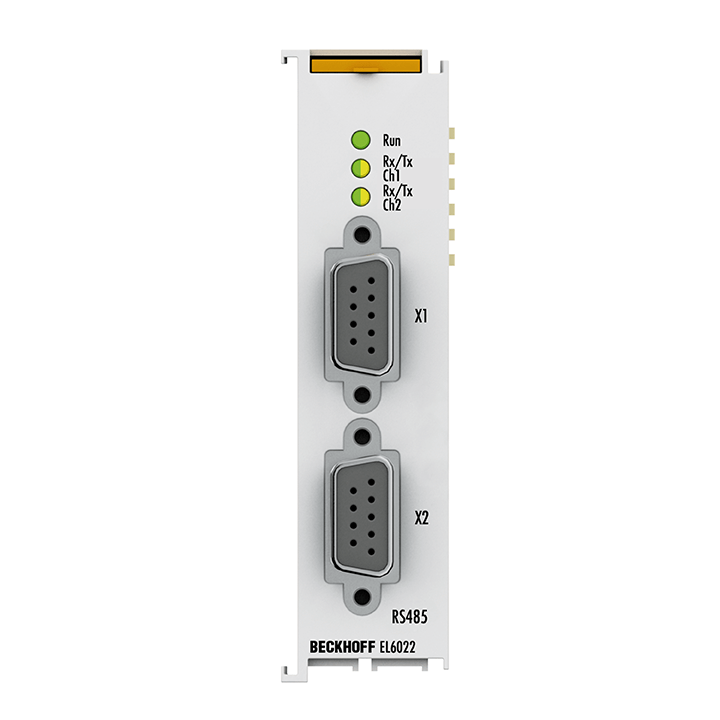

Beckhoff EL6022 EtherCAT Terminal 2-Channel RS422/RS485 Serial Interface, 300–115200 Baud, D‑sub 9‑pin, 24×100×52 mm

Overview

The Beckhoff EL6022 is a 2‑channel RS422/RS485 serial communication EtherCAT Terminal. Each port operates independently up to 115.2 kbaud (full duplex) with differential signaling for high noise immunity. Both channels are galvanically isolated from the E‑bus, and the module can source 2 × 5 V / 20 mA from the E‑bus to power small external devices. With the TwinCAT Virtual Serial COM Driver, the EL6022 can be exposed as standard Windows COM ports.

Key Features

• Two independent RS422/RS485 interfaces (full duplex)
• 300…115,200 baud (default 9600, 8 data bits, no parity, 1 stop bit)
• D‑sub 9‑pin connectors; ~1000 m twisted‑pair cable length; 120 Ω line impedance
• Provides 2 × 5 V / 20 mA auxiliary supply (from E‑bus, isolated, short‑circuit proof)
• Large buffers: 864‑byte RX, 128‑byte TX
• 500 V isolation (E‑bus/signal); compact 24 mm DIN‑rail housing with LEDs

Applications

• Connecting multiple RS422/RS485 sensors, drives, and serial peripherals to EtherCAT
• PC communication via TwinCAT Virtual Serial COM Driver
