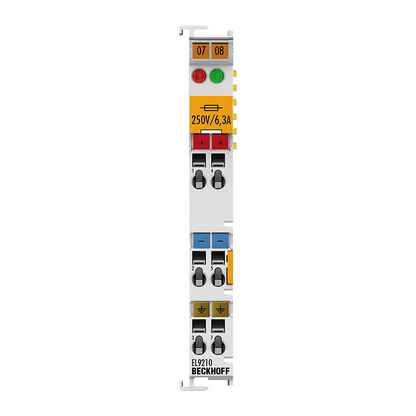

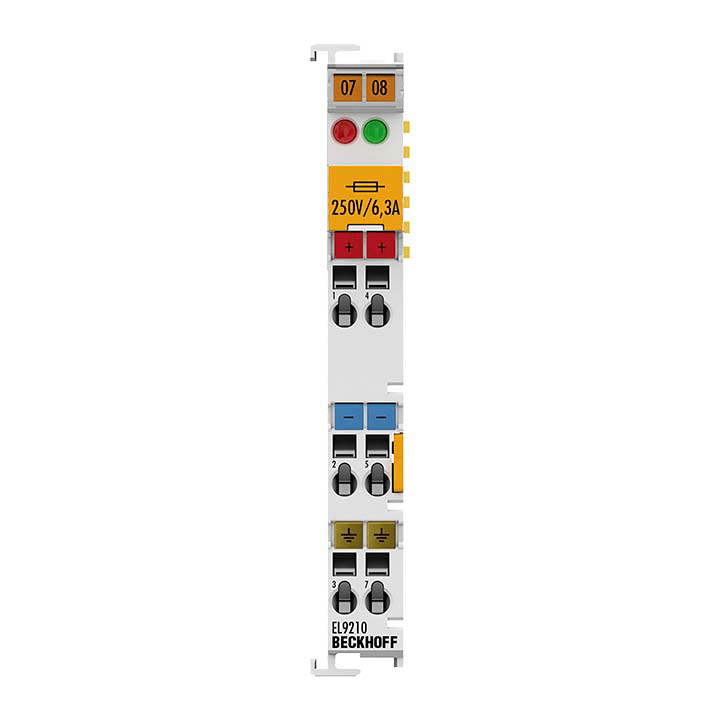

Beckhoff EL9210 EtherCAT Terminal Potential Supply with Diagnostics & 6.3A Fuse, 24V DC, 10A Power Contacts, 12×100×70 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL9210 is a potential feed EtherCAT Terminal with integrated diagnostics and a replaceable 6.3 A fuse. It enables creation of separate 24 V DC potential groups, feeds the voltage to adjacent terminals via internal power contacts, and reports status to the coupler through two input bits. Front Power/Error LEDs indicate operating state.
Key Features
- Potential supply terminal with diagnostics and replaceable 6.3 A fine-wire fuse
- Feeds 24 V DC to adjacent terminals; renewed infeed supported
- Status reported to the E‑bus (2 input bits) plus front Power/Error LEDs
- Electrical isolation: 500 V (E‑bus/field)
- Compact 12 mm housing; DIN‑rail mounting
Applications
- Setting up separate 24 V DC potential groups in EtherCAT terminal strings
- Fused power feed with diagnostic feedback in control panels
Specifications
| Specific MPN | EL9210 |
| Technology | Potential supply terminal with diagnostics and fuse |
| Nominal Voltage | 24 V DC |
| Integrated Fuse | Replaceable fine‑wire fuse up to 6.3 A |
| Power Contacts Rating | ≤ 10 A |
| Diagnostics / Process Image | Yes; 2 input bits reported to E‑bus; Power (green) / Error (red) LEDs |
| E‑bus Current | typ. 90 mA |
| Electrical Isolation | 500 V (E‑bus / field potential) |
| Housing Width | 12 mm |
| Dimensions (W × H × D) | 12 mm × 100 mm × 70 mm |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV |
