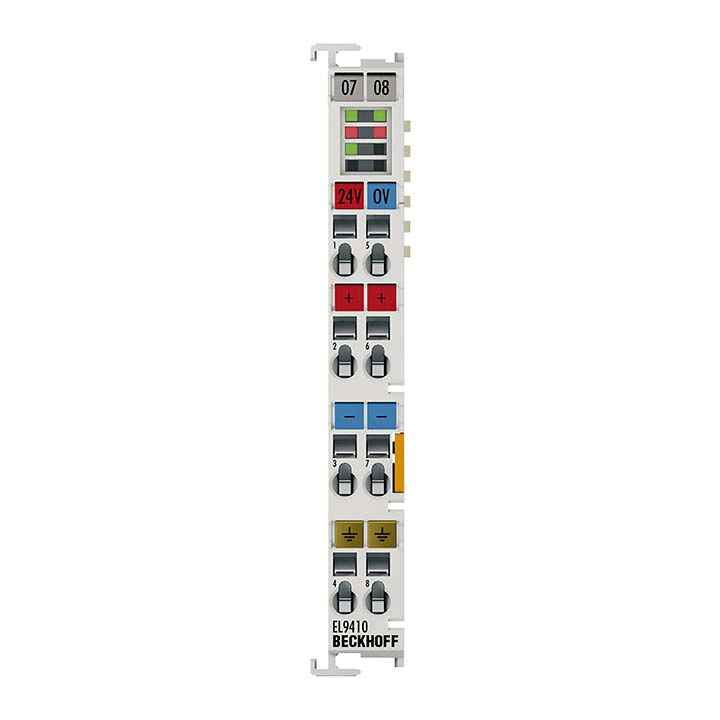

Beckhoff EL9410 EtherCAT Terminal Power Supply, 24V DC Input, 5V/2A E‑bus Output, 12×100×68 mm
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff EL9410 is an EtherCAT power supply terminal used to refresh and supply the E‑bus. It injects up to 2 A at 5 V into the E‑bus for configurations with many terminals and can additionally feed up to 24 V DC / 10 A to the power contacts. Diagnostic status is available via LEDs and in the process image.
Key Features
- Power supply terminal for EtherCAT E‑bus refresh
- 5 V, 2 A E‑bus output current
- Accepts 24 V DC input (−15%/+20%)
- Power contacts up to 24 V DC / 10 A
- Diagnostics via LEDs and process image
- 500 V isolation between E‑bus and field potential
Applications
- Large EtherCAT terminal strings requiring additional E‑bus current
- Panels needing distributed 24 V power contact infeed with E‑bus refresh
Specifications
| Specific MPN | EL9410 |
| Technology | Power supply terminal for E‑bus refresh |
| Input Voltage | 24 V DC (−15%/+20%) |
| Input Current | typ. 70 mA + (E‑bus/4) |
| E‑bus Output Voltage/Current | 5 V / 2 A |
| Power Contacts | max. 24 V DC / max. 10 A |
| Diagnostics | LEDs and process image |
| Electrical Isolation | 500 V (E‑bus / field potential) |
| Short‑circuit Proof | Yes |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm; IP20 |
| Approvals | CE, CCC, UL, ATEX, IECEx, DNV |
