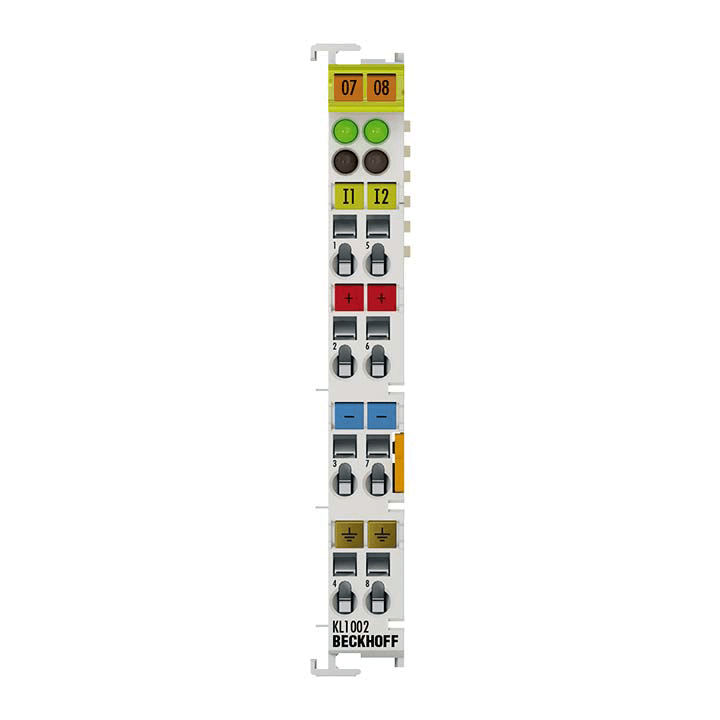

Beckhoff KL1002 Bus Terminal Digital Input, 24V DC, 3 ms Filter, 2 Channels, 12×100×68 mm
Regular price
$55.00 USD
Regular price
Sale price
$55.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff KL1002 is a 2‑channel digital input Bus Terminal that acquires 24 V DC binary signals and transmits them galvanically isolated to the controller. Each channel includes LED status indication. A built‑in 3 ms input filter suppresses contact bounce from mechanical switches.
Key Features
- 2 digital inputs, 24 V DC (EN 61131‑2, type 1)
- Input filter: typ. 3 ms for bounce suppression
- Electrical isolation: 500 V (K‑bus/field potential)
- Compact 12 mm IP20 terminal with per‑channel LEDs
- Approvals: CE, CCC, UL, ATEX, IECEx, DNV
Specifications
| Specific MPN | KL1002 |
| Inputs | 2 channels, 24 V DC (EN 61131‑2, type 1) |
| Signal Voltage “0” / “1” | “0”: −3…+5 V; “1”: 15…30 V |
| Input Current | typ. 5 mA |
| Input Filter | typ. 3 ms |
| Electrical Isolation | 500 V (K‑bus/field) |
| K‑bus Current / Power Contacts | K‑bus typ. 3 mA; power contacts up to 10 A |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
