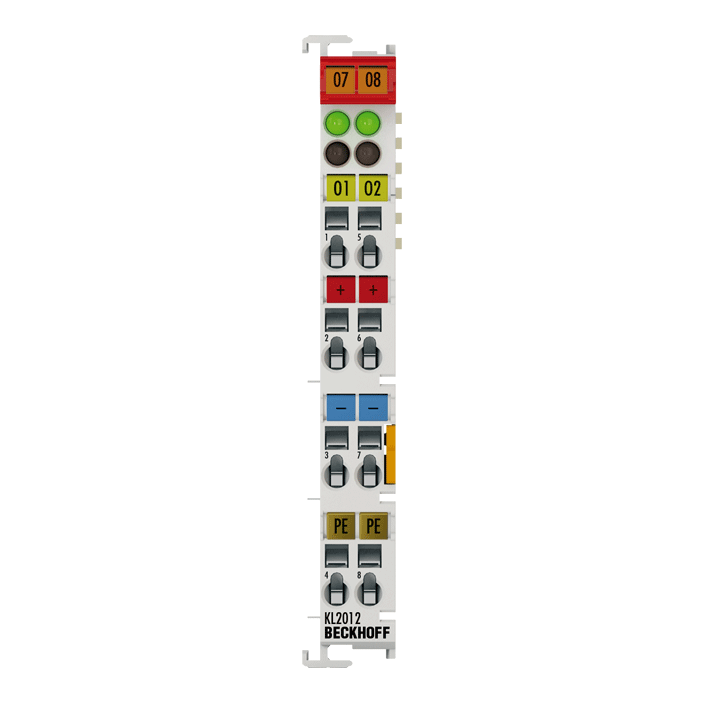

Beckhoff KL2012 Bus Terminal Digital Output, 24V DC, 0.5A per Channel, 2 Channels, 12×100×68 mm
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff KL2012 is a 2-channel digital output Bus Terminal that switches 24 V DC loads with galvanic isolation from the K‑bus. Each channel supports up to 0.5 A and is protected against overload and short-circuit. Signal states are indicated via front LEDs. Suitable for ohmic, inductive, or lamp loads in modular Bus Terminal systems.
Key Features
- 2 digital outputs, 24 V DC
- 0.5 A per channel, short-circuit proof; breaking energy < 150 mJ/channel
- Supports ohmic, inductive, and lamp loads
- Electrical isolation: 500 V (K‑bus/field)
- Compact 12 mm width; per‑channel LED indication
- Approvals: CE, CCC, UL, ATEX, IECEx
Specifications
| Specific MPN | KL2012 |
| Outputs | 2 channels, 24 V DC |
| Max. Output Current | 0.5 A per channel (short-circuit proof) |
| Load Types | Ohmic, inductive, lamp load |
| Electrical Isolation | 500 V (K‑bus/field potential) |
| Power Contacts Consumption | typ. 15 mA + load; power contacts up to 10 A |
| K‑bus Current | typ. 5 mA |
| Breaking Energy | < 150 mJ/channel |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
