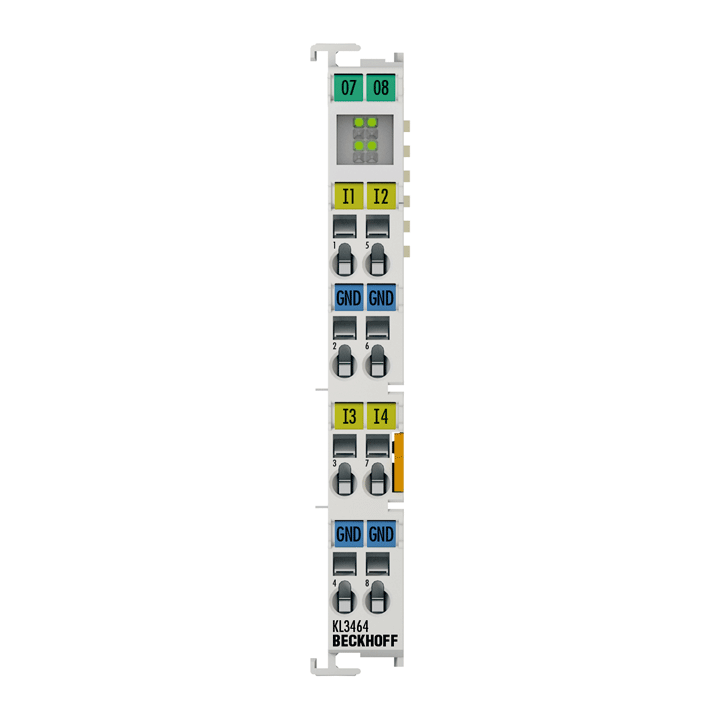

Beckhoff KL3464 Bus Terminal Analog Input, 0–10 V, 12-bit, 4 Channels, 12×100×68 mm
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff KL3464 is a 4‑channel analog input Bus Terminal for 0…10 V signals. Each single‑ended input is digitized with 12‑bit resolution and transmitted to the controller with galvanic isolation from the K‑bus. The four inputs are 2‑wire versions with a common internal ground. Front LEDs indicate data exchange with the Bus Coupler.
Key Features
- Four single‑ended analog voltage inputs (0…10 V)
- 12‑bit resolution; ~2 ms conversion time
- Input impedance >130 kΩ
- Electrical isolation: 500 V (K‑bus/signal voltage)
- Compact 12 mm Bus Terminal with per‑channel LED indication
- Approvals: CE, CCC, UL, ATEX, IECEx, DNV
Specifications
| Specific MPN | KL3464 |
| Number of Inputs | 4 (single‑ended, 2‑wire, common internal ground) |
| Signal Voltage Range | 0…10 V |
| Resolution | 12 bit |
| Conversion Time | ~2 ms |
| Input Impedance | >130 kΩ |
| Electrical Isolation | 500 V (K‑bus / signal voltage) |
| K‑bus Current | typ. 100 mA |
| Process Image | Input: 4 × 16‑bit data (optional 4 × 8‑bit control/status) |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
