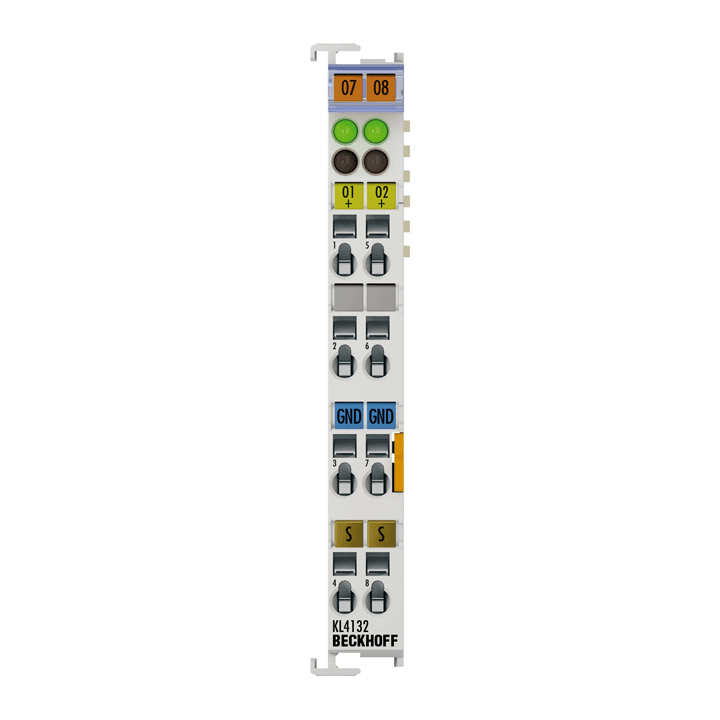

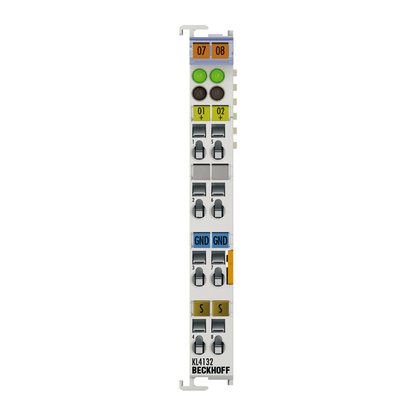

Beckhoff KL4132 Bus Terminal Analog Output, ±10 V, 16-bit, 2 Channels, 12×100×68 mm
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff KL4132 is a 2‑channel analog output Bus Terminal that generates −10…+10 V signals with 16‑bit resolution. Outputs share a common ground and are electrically isolated from the K‑bus. RUN LEDs indicate data exchange with the Bus Coupler. Ideal for precise voltage control in Bus Terminal systems.
Key Features
- Two single‑ended analog voltage outputs (±10 V)
- High resolution: 16 bit; conversion time ~1.5 ms
- Short‑circuit proof; load > 5 kΩ
- Output error < ±0.1% of end value
- Electrical isolation: 500 V (K‑bus/signal)
Specifications
| Specific MPN | KL4132 |
| Outputs | 2 channels, single‑ended |
| Signal Range | −10…+10 V |
| Resolution | 16 bit |
| Conversion Time | ~1.5 ms |
| Accuracy | Output error < ±0.1% of end value |
| Load | > 5 kΩ (short‑circuit proof) |
| Isolation | 500 V (K‑bus / signal voltage) |
| K‑bus Current | typ. 75 mA |
| Process Image | 2 × 16‑bit data (optional 2 × 8‑bit control/status) |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
