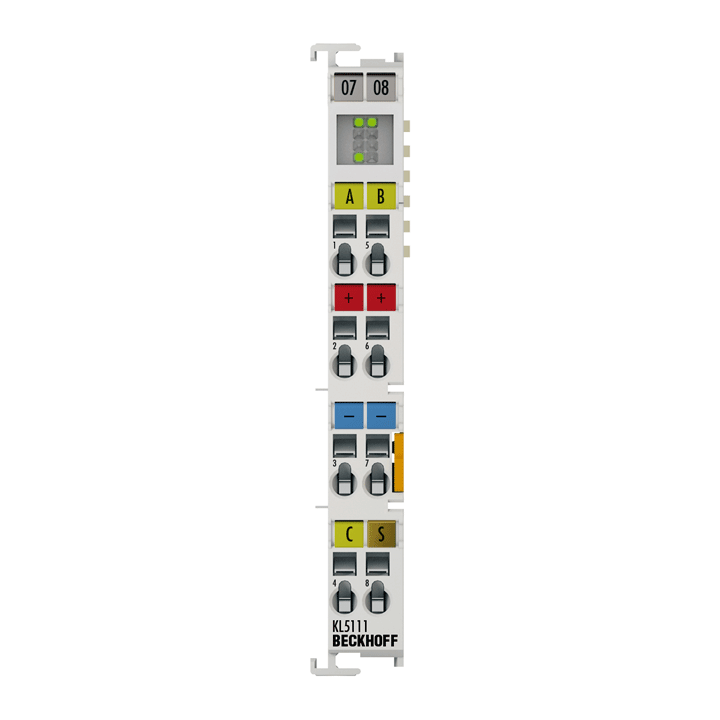

Beckhoff KL5111 Bus Terminal Incremental Encoder Interface, 24V HTL, A/B/Z, 1M inc/s (4x), 250kHz, 12×100×68 mm
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Beckhoff KL5111 is a 1‑channel incremental encoder interface Bus Terminal for 24 V DC HTL encoders. It provides A, B, and zero (C/Z) inputs, a 16‑bit counter with quadrature (4‑fold) evaluation, and a 16‑bit latch for the zero pulse. Counter values can be read, set, and enabled via the fieldbus. Interval measurement with 200 ns resolution is supported.
Key Features
- Incremental encoder interface (A, B, C/Z), 24 V DC HTL
- 16‑bit counter with quadrature decoder (4‑fold evaluation)
- Zero‑pulse 16‑bit latch; commands to read, set, enable counter
- Limit frequency: 250 kHz signal (up to 1,000,000 increments/s with 4x evaluation)
- Electrical isolation: 500 V (K‑bus/signal)
- Process image: 2 × 16‑bit data; 2 × 8‑bit control/status
Specifications
| Specific MPN | KL5111 |
| Technology | Incremental encoder interface, 24 V DC HTL (EN 61131‑2 type 1) |
| Channels / Signals | 1 channel; A, B, C (zero) |
| Counter / Latch | 16‑bit counter with 4‑fold evaluation; 16‑bit Z‑pulse latch |
| Limit Frequency / Max Rate | 250 kHz signal; up to 1,000,000 increments/s (4x evaluation) |
| Interval Measurement | Resolution 200 ns |
| Power Supply | 24 V DC; K‑bus typ. 40 mA |
| Electrical Isolation | 500 V (K‑bus / field) |
| Approvals | CE, CCC, UL, ATEX, IECEx |
| Dimensions (W × H × D) | 12 × 100 × 68 mm; IP20 |
