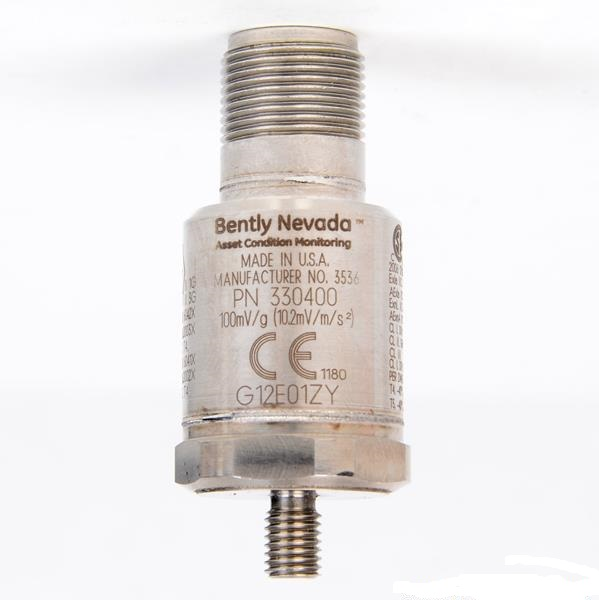

Bently Nevada 330400-02-05 330400 Series Accelerometer Acceleration Transducer, 100 mV/g, 10 Hz to 15 kHz
Regular price
$950.00 USD
Regular price
Sale price
$950.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Bently Nevada 330400-02-05 is a high-precision acceleration transducer designed for critical machinery applications, specifically engineered for casing acceleration measurements such as gear mesh monitoring. Compliant with American Petroleum Institute (API) Standard 670, this sensor provides reliable vibration data for proactive asset condition monitoring and machine protection.
| Product ID (MPN) | 330400-02-05 |
| Series | 330400 Accelerometer |
| Sensitivity | 10.2 mV/m/s² (100 mV/g) ±5% |
| Acceleration Range | 490 m/s² (50 g) peak overall |
| Frequency Response | 10 Hz to 15 kHz (600 cpm to 900,000 cpm) ±3dB |
| Amplitude Linearity | ±1% to 490 m/s² (50 g) peak |
| Mounted Resonant Frequency | Greater than 30 kHz |
| Input Voltage | -24 ± 0.5 Vdc |
| Bias Current | 2 mA nominal |
| Grounding | Case isolated |
| Transverse Sensitivity | Less than 5% of axial |
