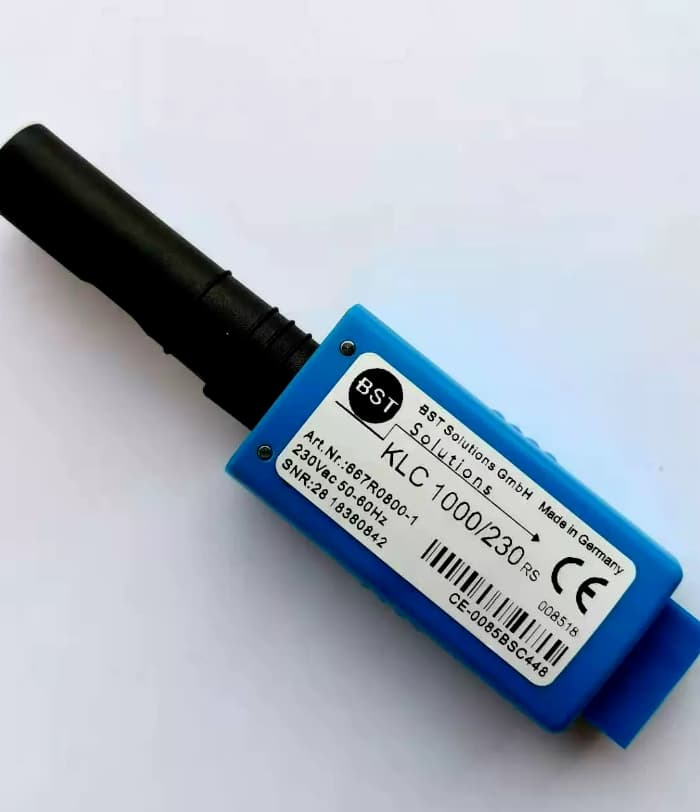

BST Flamonitec KLC1000/230RS / 611041322160 UV Flame Detector, 230V AC, High Sensitivity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Flamonitec KLC1000/230RS (manufacturer Article No. 611041322160) is a high-sensitivity ultraviolet flame detector manufactured by BST Solutions GmbH. This KLC 1000 series variant features radial flame detection, a 230V AC operating supply, and a UV spectral response of 185–260 nm. Designed for intermittent burner operation, it provides a switched flame signal suitable for compatible burner control systems with ionization or LDR inputs. The detector incorporates an integrated LED flame intensity indicator and requires no sensitivity adjustment during commissioning.
| Brand | Flamonitec |
| Manufacturer | BST Solutions GmbH |
| Model / Type | KLC 1000 / 230 RS |
| Article No. | 611041322160 |
| Product Series | KLC 1000 |
| Detector Type | UV Flame Detector |
| Sensitivity Version | High Sensitivity (RS) |
| Optical Orientation | Radial, Left |
| Spectral Range | 185–260 nm |
| Operating Voltage | 230V AC, 50–60 Hz |
| Current Consumption | 5.5 mA Maximum |
| Operating Mode | Intermittent Burner Operation |
| Output Type | Potential-Free Semiconductor Relay Output |
| Maximum Switched Current | 15 mA |
| Maximum Switched Voltage | 280V AC / 400V DC |
| Maximum Switched Power | 0.3 W |
| Flame Detection Switch-On Delay | Typically 0.5 s |
| Flame Detection Switch-Off Delay | Less Than 0.6 s |
| Tolerated Flame Signal Interruption | Approximately 200 ms |
| UV Tube Lifetime | Greater Than 10,000 Hours (Operating Conditions Dependent) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | Up to 95%, Non-Condensing |
| Ingress Protection | IP41 |
| Electrical Protection Class | Class II |
| Dimensions (L × W × H) | 115 × 30 × 22 mm (Length Including Plug) |
| Weight | Approximately 29 g |
| Applicable Standard | EN 298:2012-11 |
Typical Applications: The Flamonitec KLC1000/230RS is designed for single-burner flame monitoring in oil, gas, and dual-fuel burner systems, particularly where flame radiation in the visible spectrum is limited. Its UV sensing technology minimizes response to infrared background radiation from hot refractory surfaces. The detector can interface with compatible burner control units through ionization or LDR signal inputs.
Installation and Safety Requirements: The KLC 1000 requires a compatible burner management system that performs a no-flame check after burner shutdown. A controlled shutdown, power interruption, and restart must occur at least once every 24 hours. If the required post-shutdown flame verification is unavailable, the manufacturer specifies the KLC 11 instead. Installation and functional testing must be performed by qualified personnel in accordance with the manufacturer's instructions.
B2B Sourcing & Replacement Support: Apexon Supply provides industrial sourcing assistance for the Flamonitec KLC1000/230RS UV flame detector and related burner monitoring components. Buyers should verify the exact model, Article No. 611041322160, high-sensitivity radial configuration, operating voltage, burner controller compatibility, and connection requirements before procurement. Connection cables and mounting accessories should be confirmed separately.
Request a Quote: Contact Apexon Supply with model KLC1000/230RS, Article No. 611041322160, required quantity, and burner control system details for B2B quotation, replacement sourcing, or technical alignment support.
