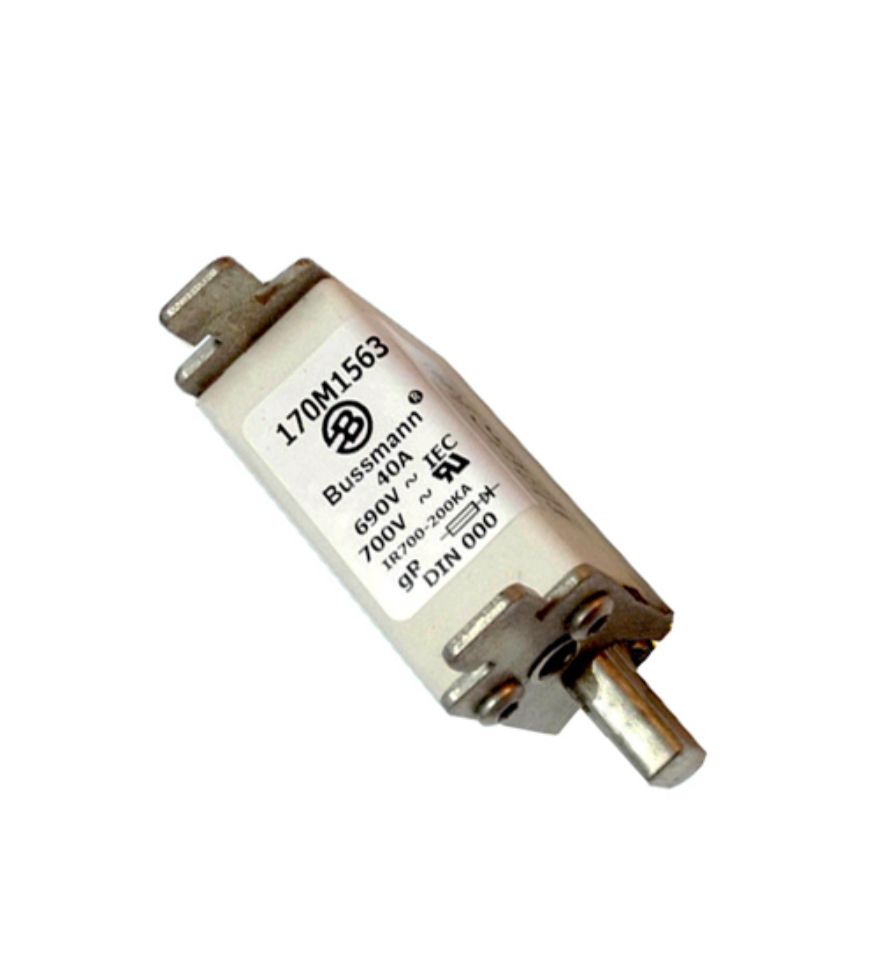

Eaton Bussmann 170M1563D High Speed Fuse, 40A 690V AC, Size 000 Square Body, gR Dual Indicator - Pack of 10

The Eaton Bussmann 170M1563D is a high-performance square body fuse designed for the advanced protection of power semiconductor devices. This Size 000 (DIN 000) fuse is classified under the gR utilization category, providing full-range protection for both overload and short-circuit conditions. It features a dual indicator system—offering both visual status and compatibility with remote monitoring microswitches—along with live gripping lugs for secure handling in industrial environments. Engineered for low I²t let-through and reduced power dissipation, it ensures the longevity and safety of sensitive electronics.

Technical Specifications:

• Manufacturer: Eaton
• Brand: Bussmann series
• Catalog Number: 170M1563D
• Body Style: Square Body, Size 000 (DIN 000)
• Mounting Type: DIN 43620 Blade End (Knife Blade)
• Lugs: Live Gripping Lugs Included
• Indicator Type: Dual Indicator (Visual and Type T Indicator)
• Rated Current: 40 A
• Rated Voltage: 690V AC (IEC) / 700V AC (UL)
• Utilization Category: gR (Full-range semiconductor protection)
• Breaking Capacity: 200 kA RMS Sym.

Physical Characteristics:

• Dimensions: 79 mm (L) x 21 mm (W) x 51 mm (H)
• Net Weight: 135.3 g
• Certifications: IEC Rated, UL Recognized, CE Marked, RoHS Compliant

Application: Ideally suited for the protection of variable speed drives, power rectifiers, UPS systems, and other sensitive power semiconductor applications. Its gR classification makes it particularly effective for circuits where comprehensive protection against various fault levels is required within a compact DIN-standard footprint.
